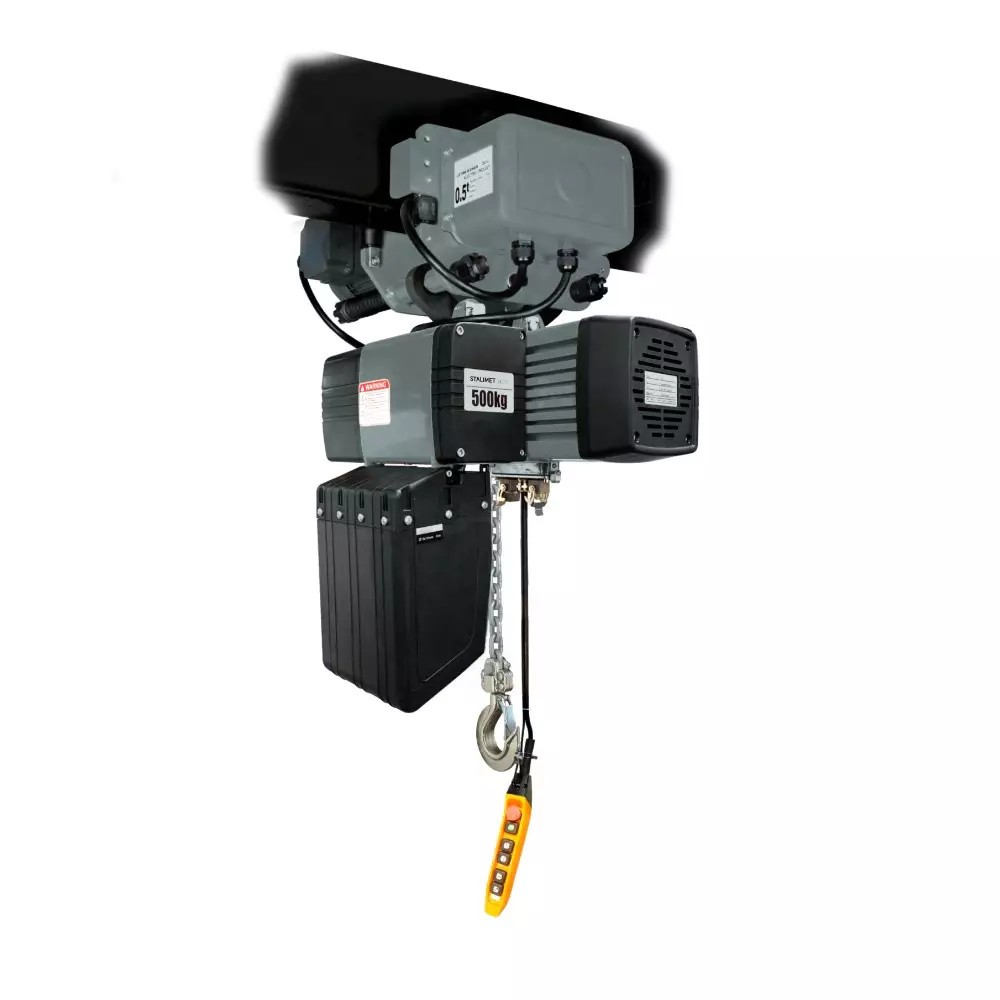

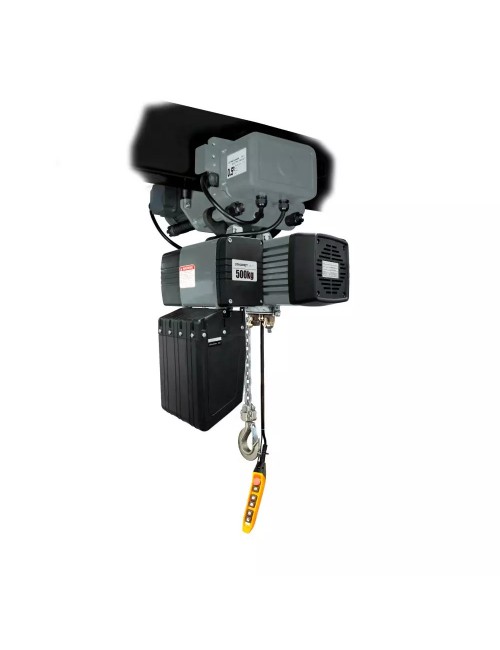

Electric chain hoist with electric trolley ESW EWE INOX

Has a rating plate with: manufacturer's mark, CE mark, lifting capacity, factory number, year of production, chain size and class and weight
Two speeds for lifting and lowering
Equipped with overload clutch, up/down limit switches, emergency stop button
The trolley enables accurate positioning or easy movement of large loads along the support beam using an electric maneuvering mechanism
Chain and lower hook made of stainless steel
Hoist—housing protection class IP55
Control pendant—housing protection class IP65

Code		ESW EWE INOX 00,125-3,0	ESW EWE INOX 00,16-3,0	ESW EWE INOX 00,25-3,0	ESW EWE INOX 00,5-3,0	ESW EWE INOX 01,0-3,0
Capacity	[kg]	125	160	250	500	1000
Lifting height	[m]*	3	3	3	3	3
Recommended profile width	[mm]**	74-140	74-140	74-140	74-140	74-140
Chain diameter	[mm]	Ø4x12	Ø4x12	Ø4x12	Ø5x15	Ø7,1x21
Number of chain links		1	1	1	1	1
Hoist Workload Group ISO / FEM	[ISO/FEM]	1Bm/M3	1Bm/M3	1Bm/M3	1Bm/M3	1Bm/M3
Lifting speed	[m/min]	8/2	8/2	8/2	8/2	8/2
Driving speed	[m/min]	20 / 6,7	20 / 6,7	20 / 6,7	20 / 6,7	20 / 6,7
Voltage	[V]	400	400	400	400	400
Hoist motor power	[kW]	0,4/0,1	0,4/0,1	0,4/0,1	0,72 / 0,18	1,6/0,4
Engine power of the trolley	[kW]	0,2/0,07	0,2/0,07	0,2/0,07	0,2/0,07	0,2/0,07
Mass	[kg]	47	47	47	58	77

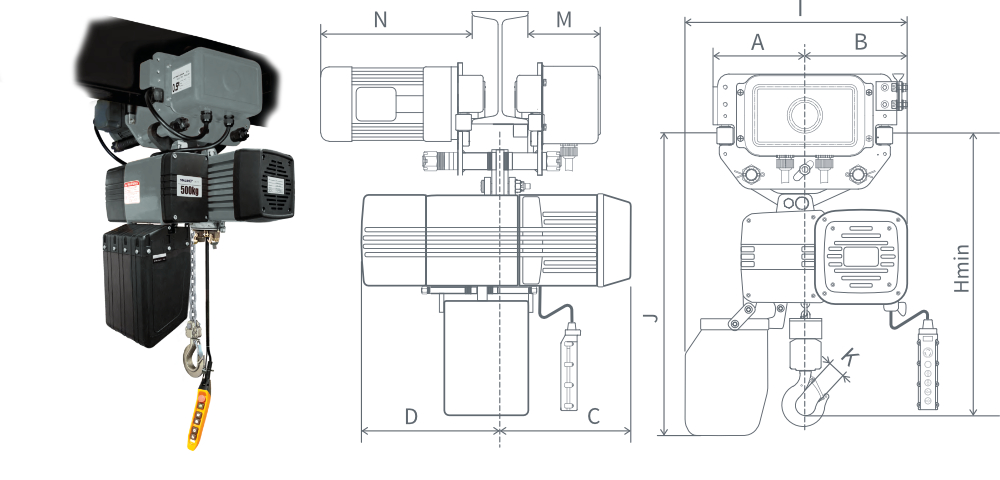

H_min	[mm]	438	438	438	480	578
A	[mm]	114	114	114	118	128
B	[mm]	123	123	123	162	187
C	[mm]	211	211	211	230	264
D	[mm]	228	228	228	204	245
I	[mm]	293	293	293	343	405
J	[mm]	462	462	462	545	577
K	[mm]	23	23	23	27	31
M	[mm]	131	131	131	131	131
N	[mm]	336	336	336	336	336
