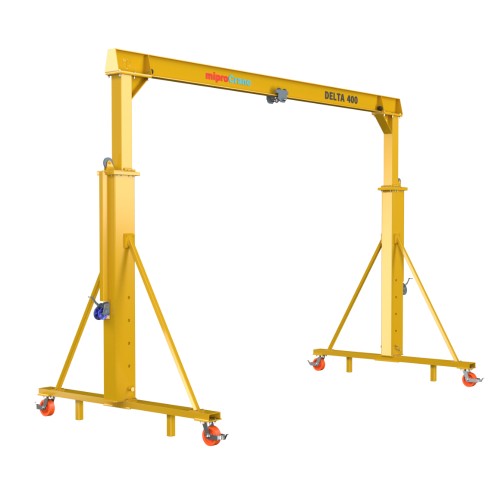

Gantry crane height adjustable DELTA 400

The gantry crane Delta 400 is designed for lifting, lowering, and moving loads within its working space, which is determined by the length of the load-bearing beam. The load capacity of the gantry hoist is specified for the entire working range of the load-bearing beam.
Modular design facilitates disassembly for servicing, transport, or storage
The gantry crane can be equipped with a trolley for I-beams
Short installation time, possibility of relocation
Precision, speed, safety, and operator comfort
Low noise level during operation

Adjustment of the height of the support beam:

The gantry crane can be folded or disassembled into simple components, making it easier to service, transport or store.

ESW

WLL: up to 1500 kg

WLL: up to 1250 kg

SBE

WLL: up to 1500 kg

(for cranes with electric hoist):

EB1 three-phase electrical socket with rotary switch
EB2 three-phase electrical socket with main rotary disconnector and overcurrent protection, voltage monitoring relay and activation button, mounted on an electrical box with an 8-module DIN rail for mounting modular devices of the TH35 system
Spiral cable route
SG additional electrical socket at the hoist, enabling power supply of suspended devices, e.g. vacuum grippers with an electric pump (option)

Cassette control ST The cassette is suspended under the hoist or on a separate cable line For hoists with an electric trolley and cranes with an electric drive for rotation of the cassette arm with 4, 6 or 8 buttons	Cassette control SE The cassette is suspended under the hoist or on a separate cable line The ergonomic shape allows for safe control with one hand

Control with a manipulator SM Only VERLINDE hoists Control buttons and manipulator integrated with the load hook It allows for safe control and simultaneous precise two-handed maneuvering of the hook and load	Control cylindrical SC Only KITO EDC hoists Steering cylinder integrated with the load hook It allows for safe control with one hand while maneuvering the load hook The handle housing contains a main and alarm switch, potentiometers determining the upper and lower limits of the lifting speed, a speed range switch and diodes indicating the device status
