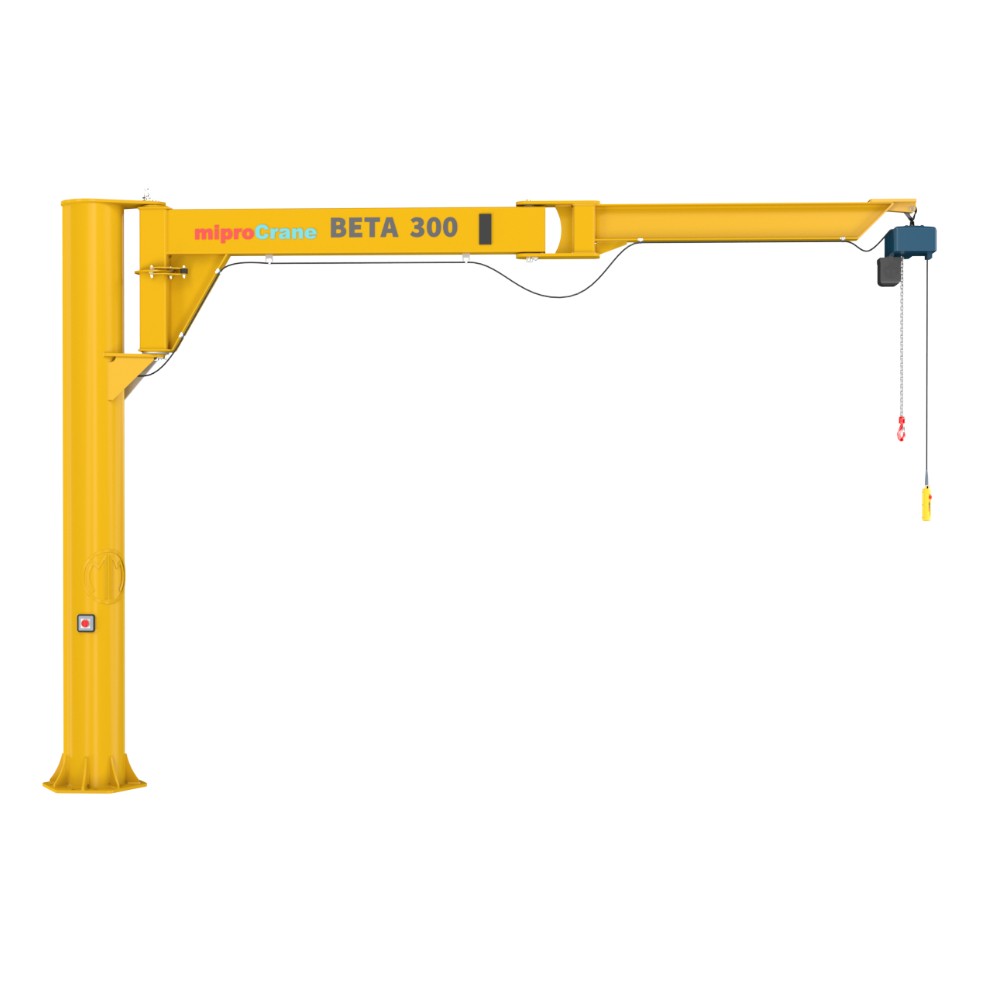

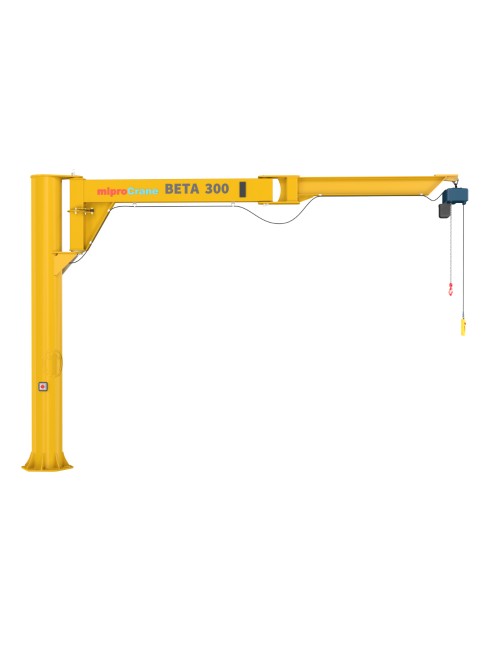

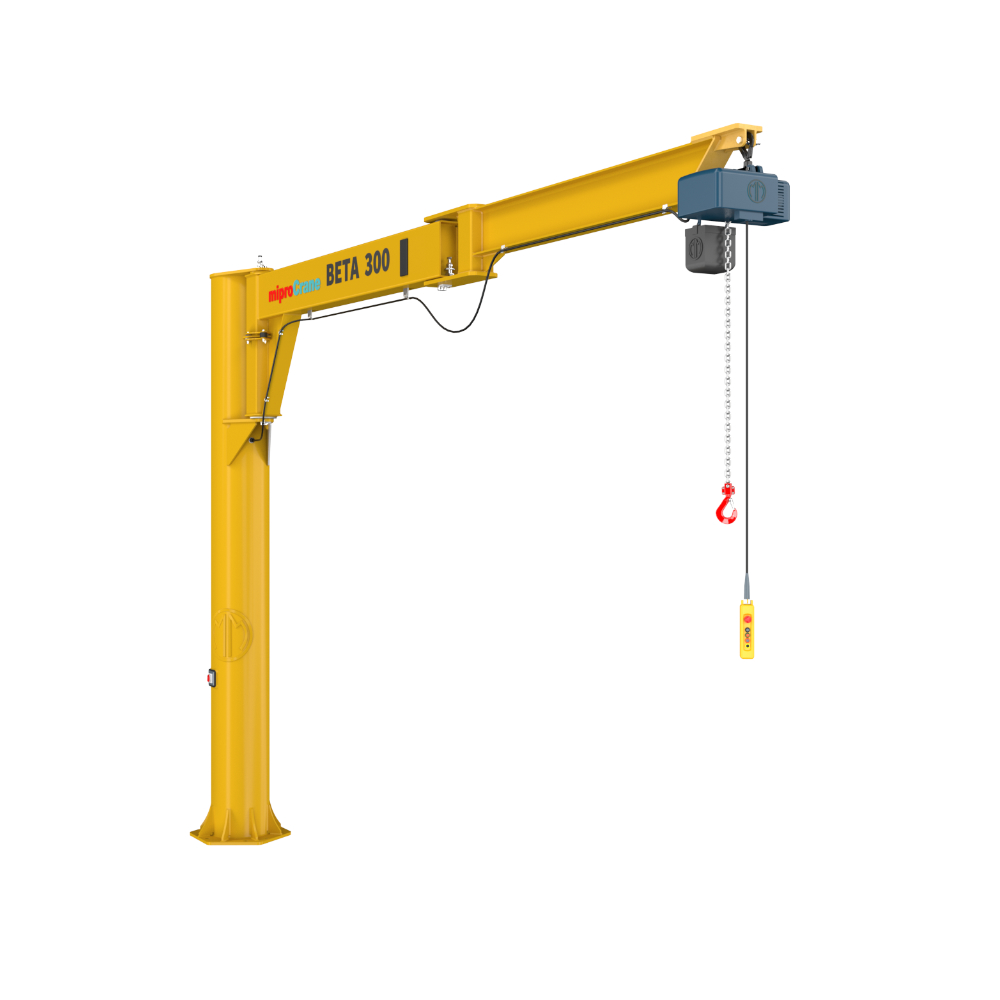

Pillar-mounted slewing jib crane BETA 300

WLL: 63 - 500 kg
Outreach: 1 - 7,5 m


Pillar-mounted slewing jib crane BETA 300

  • Slewing range: 270° + 300°
  • Rotation: manual
  • Chain hoist: electric ENW or manual SBE
  • Control from the attached cassette  to hoist or separately
  • Made of high-strength steel
  • Anti-corrosion protection by machine shot-blasting and two-layer spray painting
  • Support column made of steel pipe. Height and diameter adapted to the user's requirements
  • The ribbed foot of the load-bearing column ensures a solid and safe attachment of the crane to the ground. Optionally, an intermediate orifice for installation on the floor using chemical anchors
  • The swivel arm of the crane is made of the hollow rectangle +IPE profile as standard. Adapted to work with a wide range of trolleys and hoists.
  • A wide range of options for mechanical design, equipment and fastening allows our cranes to be used efficiently in many industrial applications
  • Short installation time, possibility of relocation
  • Precision, speed, safety and comfort of operators' work
  • Low noise level during use
Crane BETA 300.jpg
Outreach
[m]:
3,0 4,0 4,5 5,0 6,0 7,5
WLL
[kg]:
63  *  *  *  *  *  *
125  *  *  *  *  *
160  *  *  *  *
250  *  *  *
320  *  *
500  *

Recommended equipment. Optional:

  • hoist ESW
  • hoist  EVW
  • hoist  VX
  • hoist SBE



ESW

WLL: up to 500 kg

EVW

WLL: up to 500 kg

VX

WLL: up to 500 kg

SBE

WLL: up to 500 kg


SHOW

SHOW

SHOW

SHOW



Control:

Cassette control ST

  • The cassette is suspended under the hoist or on a separate cable line
  • For hoists with an electric trolley and cranes with an electric drive for rotation of the cassette arm with 4, 6 or 8 buttons

Cassette control SE

  • The cassette is suspended under the hoist or on a separate cable line
  • The ergonomic shape allows for safe control with one hand

kaseta sterujaca 1.jpg

kaseta sterujaca 2.jpg

Control with a manipulator SM

  • Only VERLINDE hoists Control buttons and manipulator integrated with the load hook
  • It allows for safe control and simultaneous precise
    two-handed maneuvering of the hook and load

Control cylindrical SC

  • Only KITO EDC hoists
  • Steering cylinder integrated with the load hook
  • It allows for safe control with one hand while maneuvering the load hook
  • The handle housing contains a main and alarm switch, potentiometers determining the upper and lower limits of the lifting speed, a speed range switch and diodes indicating the device status

kaseta sterujaca 3.jpg

kaseta sterujaca 4.jpg


Arm rotation drive:

NB manual drive

  • Arm rotation caused by manual movement of a load or load chain


NB-naped-reczny.jpg   NB-naped-reczny1.jpg


Working area limitation:

SO-B Adjustable arm rotation limiter (bumper), mounted on the arm

  • Limits the movement of the crane arms in zones dangerous to the operation of the crane, people or nearby devices and installations, or facilitates work by limiting unnecessary arm movements
  • The position of the stops is adjusted using screws and mounting holes


Rotation retarder:

SP Arm rotation decelerator (optional)

  • It can only be used in the absence of an electric drive for arm rotation
  • Prevents sudden or uncontrolled rotation of the arm
  • Enables precise positioning of the load
  • Standardly installed on all crane joints
  • Principle of operation: friction with adjustable pressure force




Arm rotation lock:

SB Arm rotation lock (option)

  • Allows you to securely lock the arm in the selected position
  • Locking using a pin with an eye and a disc with holes at the lower yoke of the arm rotation axis
  • The lock can be single-point or multi-point
  • By default, the arm is locked at one point in the "straight" position



Electrical equipment:

  • SE steel cover for the main switch on the column
  • SG additional electrical socket at the hoist, enabling power supply of suspended devices, e.g. vacuum grippers with an electric pump (option)

gniazdko elektryczne.jpg


Floor fixing of pillar jib cranes:

Basic recommended methods of foundation of BETA series pillar cranes:

  • fixing with anchors on a reinforced foundation
  • fastened to the concrete floor through a steel intermediate plate on chemical anchors.

mocowanie do posadzki.jpg

MP Fastening to the concrete floor via steel
intermediate plate on chemical anchors

MF Reinforced foundation with anchors
