Mobile gantry crane DELTA 300

The gantry crane is designed for lifting, lowering and moving loads located in its working space, which is determined by the length of the bearing beam. The load capacity of the gantry winch is determined for the entire range of work of the bearing beam.

Electric hoist gantry cranes are equipped with:

an electric box with a receiving socket
single or optional double cable route
optional additional electrical socket at the hoist, enabling powering suspended devices, e.g. vacuum grippers with an electric pump

Wheelsets:

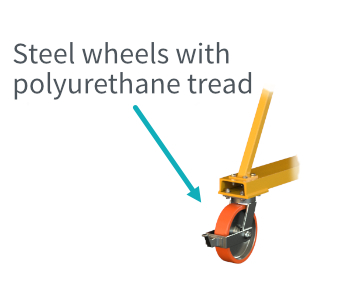

Four swivel castors brake
SK Travel direction lock (every 90°) (option)
SA Underrun protection (option)

Outreach [m]:		1	2	3	4	5	6
WLL [kg]:	250	*	*	*	*	*	*
	500	*	*	*	*	*	*
	1 000	*	*	*	*	*	*
	1 500	*	*	*	*	*	*
	2 000	*	*	*	*	*	*
	3 000	*	*	*	*	*	*
	5 000	*	*	*	*	*	*

Recommended equipment. Optional:

hoist ESW with electric trolley EWE
hoist ESW with hand trolley EWP
hoist VX with hand trolley WP
hoist VX with electric trolley WE
hoist SBE with hand trolley POT


ESW+EWE WLL: up to 5000 kg	ESW+EWP WLL: up to 2000 kg	VX+WE WLL: up to 2500 kg
SHOW	SHOW
VX+WP WLL: up to 1250 kg	SBE+POT WLL: up to 5000 kg

Electrical equipment

(for cranes with electric hoist):

EB1 three-phase electrical socket with rotary switch
EB2 three-phase electrical socket with main rotary disconnector and overcurrent protection, voltage monitoring relay and activation button, mounted on an electrical box with an 8-module DIN rail for mounting modular devices of the TH35 system
SG additional electrical socket at the hoist, enabling power supply of suspended devices, e.g. vacuum grippers with an electric pump (option)

Control:

Cassette control ST The cassette is suspended under the hoist or on a separate cable line For hoists with an electric trolley and cranes with an electric drive for rotation of the cassette arm with 4, 6 or 8 buttons	Cassette control SE The cassette is suspended under the hoist or on a separate cable line The ergonomic shape allows for safe control with one hand

Control with a manipulator SM Only VERLINDE hoists Control buttons and manipulator integrated with the load hook It allows for safe control and simultaneous precise two-handed maneuvering of the hook and load	Control cylindrical SC Only KITO EDC hoists Steering cylinder integrated with the load hook It allows for safe control with one hand while maneuvering the load hook The handle housing contains a main and alarm switch, potentiometers determining the upper and lower limits of the lifting speed, a speed range switch and diodes indicating the device status
