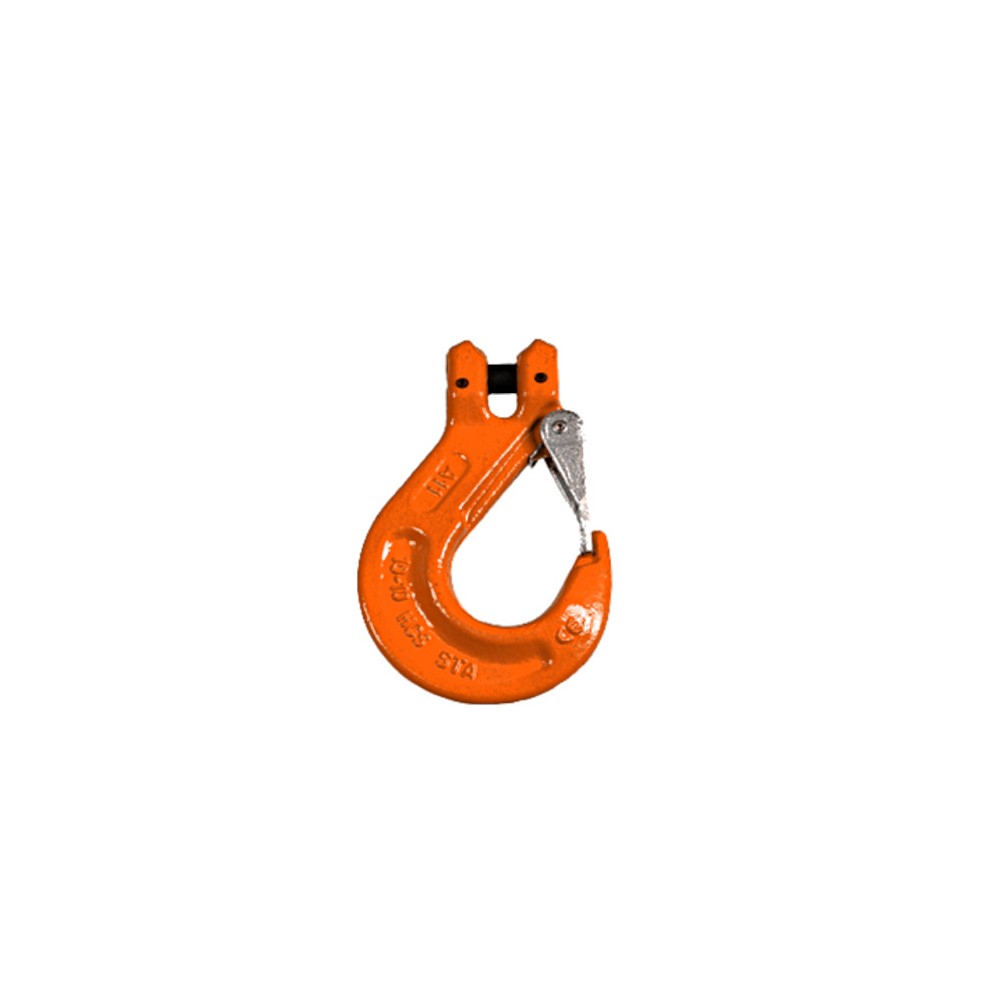

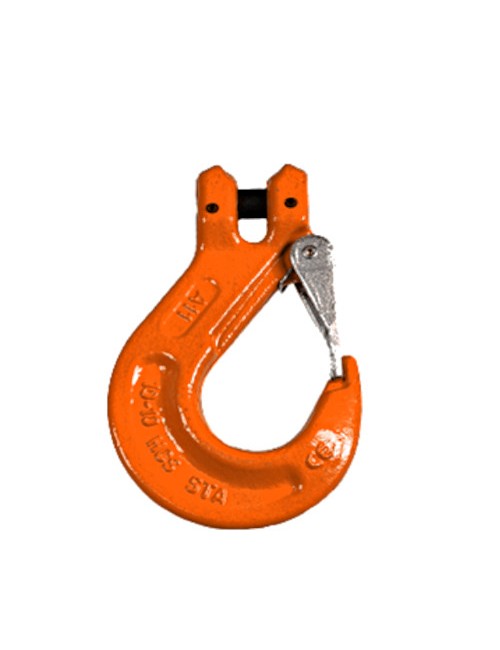

Clevis sling hook with latch grade 100 HCS

Clevis sling hook with latch grade 100 HCS

WLL: 1,4 - 16 t

ZINC_hot_dip_galvanized.png    grade_100_PN_EN_1677-4.png


 20000_cycles.png   temperature_-27-200.png

Clevis slip hook with latch grade 100 HCS

  • Made in 10 grade.
  • Safety ratio 4:1.
  • Test load of 2.5 x WLL.
  • Breaking load 4 x WLL.
  • Protected against corrosion by powder painting in orange.
  • Made according to the harmonized standard: PN-EN 1677-2

Marked on  product : producers sign, sign CE, type, class, number of faction.


Code WLL
[t]		 E
[mm]		 W
[mm]		 D
[mm]		 A
[mm]		 G
[mm]		 H
[mm]		 Mass
[kg]

HCS 06-10

1,4

71

69

7,6

16

19

23

0,33

HCS 08-10

2,5

88

86

9,7

18

25

30

0,57

HCS 10-10

4,0

102

104

13

25

27

37

1,03

HCS 13-10

6,7

129

132

15,8

34

39

47

2,17

HCS 16-10

10,0

160

156

20

40

46

55

3,9

HCS 19-10

16,0

198

190

24

50

49

62

7
