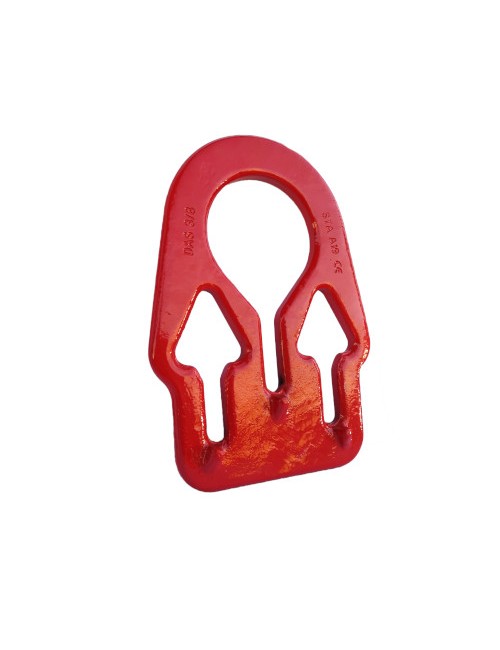

Shortenning link for chain sling grade 80 DAS

Shortenning link for chain sling grade 80 DAS

• Made in class 8
• Safety ratio 4:1
• Designed for 1- or 2-leg  chain sling
• Load test: 2.5 x WLL
• Breaking load:  4 x WLL
• Protected against corrosion by powder-coated in red



Made according to the harmonized standard: PN-EN 1677-4.
Marked: type, grade, batch number, manufacturer's mark, CE mark.

Code	Chain size [mm]	WLL [t]		Dimensions [mm]								Mass [kg]
				E [mm]	Ø F [mm]	R [mm]	D [mm]	A [mm]	B [mm]	C [mm]	L [mm]
DAS 08-8	7 (8*)	1,5	2,12										25	78,6	56,8	12	151	10	133	196	1,3
DAS 10-8	10	3,15	4,25	33	81	69,5	15	148,5	12,5	167	234	1,89

* - use with 8 mm chain is allowed, but the WLL limit must be observed, according to the table above

WLL – Working Load Limit
MBL – Minimum Breaking Load
