• Cribbing blocks GX
Cribbing blocks GX

Cribbing blocks GX

Dimensions: od 448 do 1174 mm

Cribbing blocks GX

Advantages of pads:

  • durable
  • do not absorb water
  • resistant to oil and chemicals
  • have a non-slip layer
  • light and easy to move

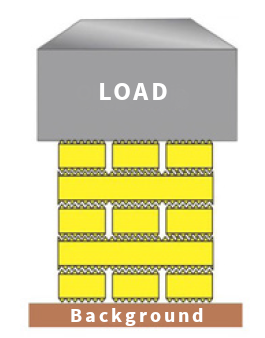

Rules of working:

How does it work?

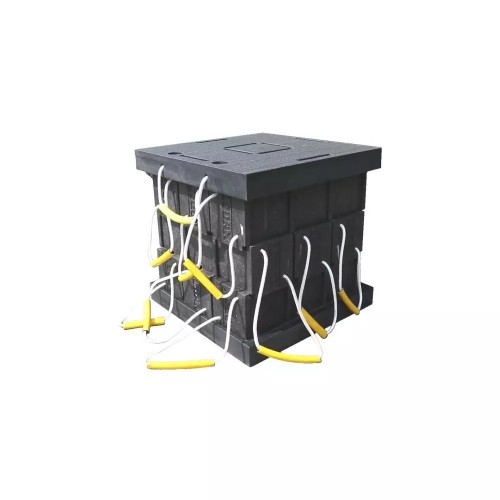

Our stabilization systems are designed as self-locking blocks.
On the two surfaces of the blocks made of the groove, and two pyramid shapes.
With this solution, blocks overlap without worrying about stability and security.

Safety first!
When you arrange the pile do not mix different blocks.
In order to secure the structure, building blocks have to be identical ( the same size, pressure and friction)

Any questions? Contact us!

Safety Tips

For maximum load capacity, the weight should be spread on contact points.

The amount of stable stack is limited to the width of the base ≤3.

We advise you to double protection use elevators with supportive blocks.



 Code Maximum load
[t]		  Dimensions
[mm]		 Weight
[kg]

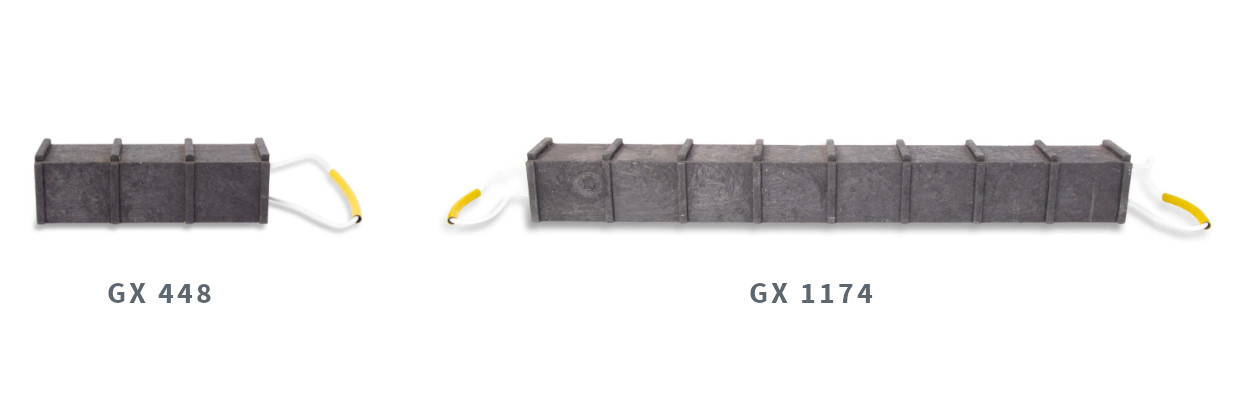

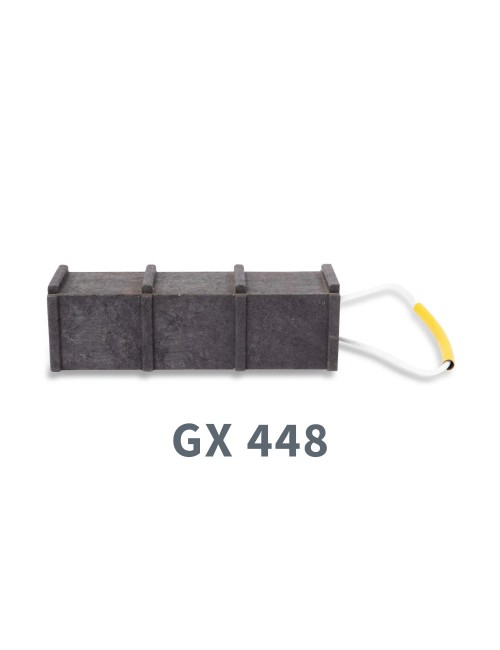

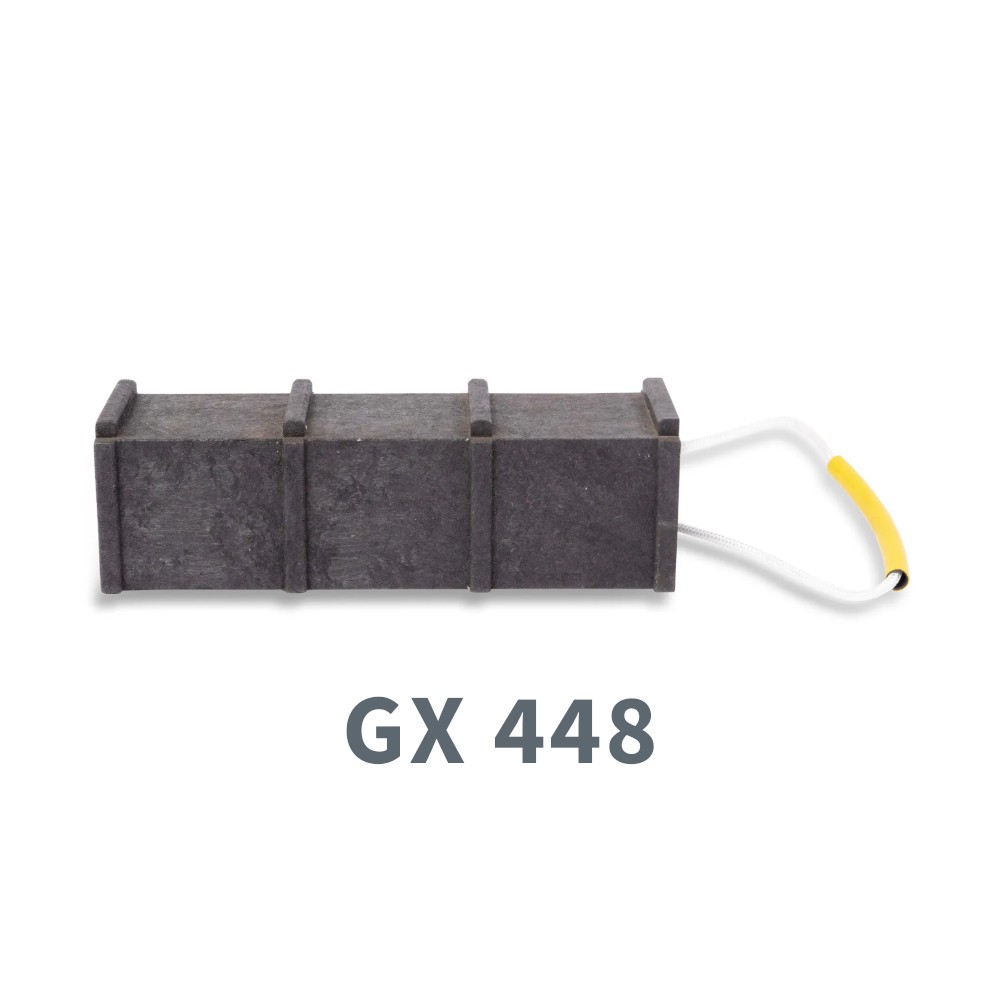

GX 448

49

448x140x140

 6,5
GX 1174

174

1174x140x140

16,5
