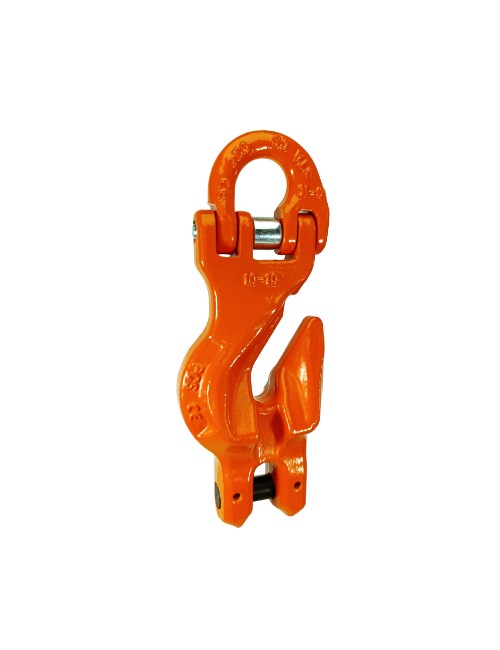

Connecting Link with Clevis Shortening Grab Hook Attachment for Chain Slings grade 100 PCS

Connecting Link with Clevis Shortening Grab Hook Attachment for Chain Slings grade 100 PCS

WLL: 1,4 - 19 t

ZINC_hot_dip_galvanized.png    grade_100_PN_EN_1677.png


Connecting Link with Clevis Shortening Grab Hook Attachment for Chain Slings grade 100 PCS

  • Made in class 100 in accordance with PN-EN 1677
  • Safety ratio 4:1.
  • Forged element, heat-treated
  • Used to shorten the length of chain slings
  • Test load of 2,5 x WLL.
  • Fatigue test 1,5 DOR 20,000 cycles
  • Protected against corrosion by powder painting in orange
  • 100% magnetic particle test

Product marking: manufacturer's mark, UKCA marking, load capacity, factory number, year of production

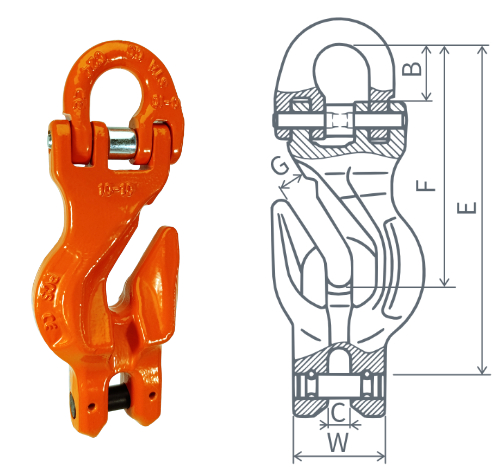

Connecting-Link-with-Clevis-Shortening-Grab-Hook-Attachment-for-Chain-Slings-grade-10-PCS-dimensiosn.jpg

Code WLL A B C D E F G W Mass
[t] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
PCS 06-10 1,4 18 16 8 7 104,7 80 8,3 32 0,4
PCS 08-10 2,5 24 25 9,5 10 136 100 10,5 37 0,8
PCS 10-10 4 29,5 28 12,5 12,6 167 123 13 48 1,5
PCS 13-10 6,7 37 37 16 16,5 223 163 15,5 59 3,4
PCS 16-10 10 46 40 18,5 20 271 194 18,5 70 5,7
PCS 20-10 16 52 46 24 25 328 247 25 85 9,8
PCS 22-10 19 61 51,5 25 27 354 258 26,5 100 14,7
