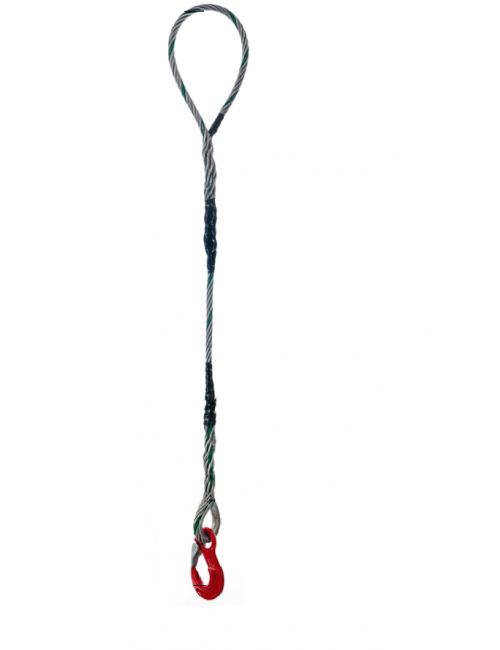

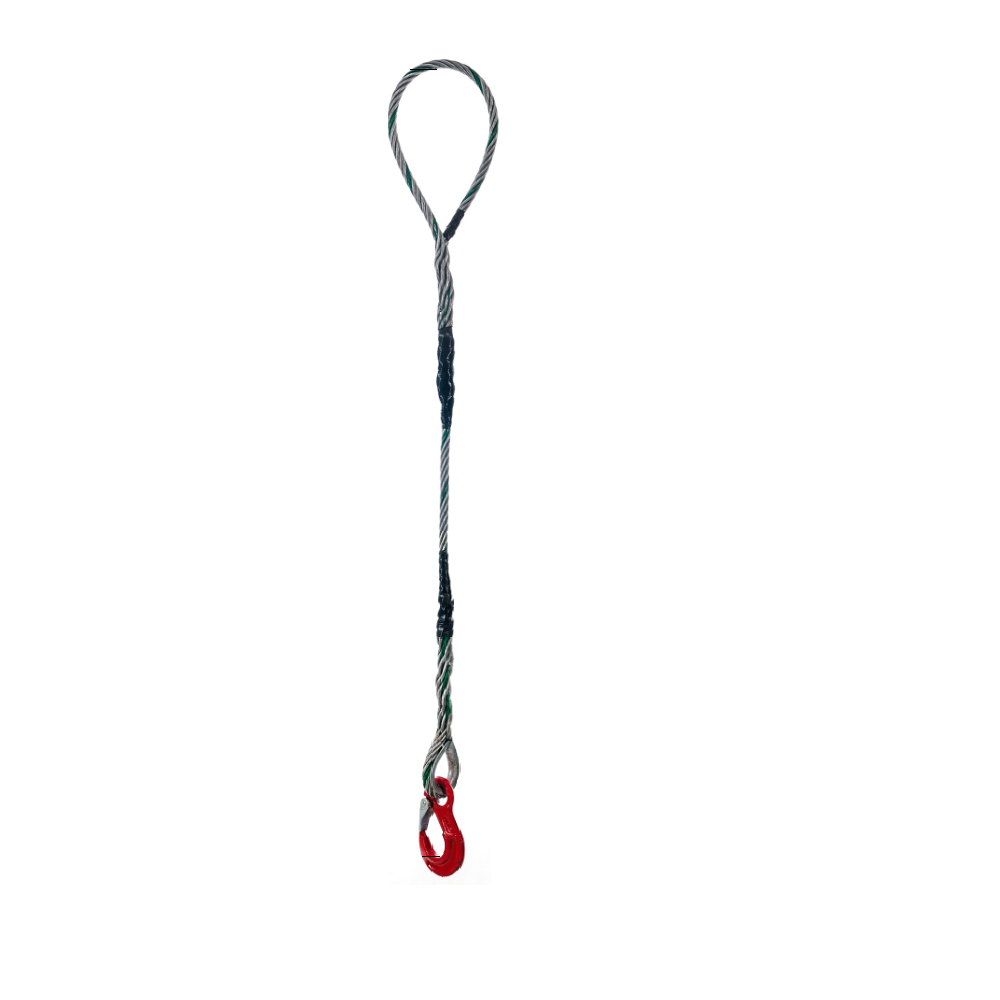

Wire rope sling type Skh
- Slings made with steel ropes of wire strength in 1960 N / mm2 tangled according to PN- EN 13411-2.
- Complies with the provisions of the Machinery Directive: 2006/42/WE
- Made according to the harmonized standard: PN-EN 13414-1

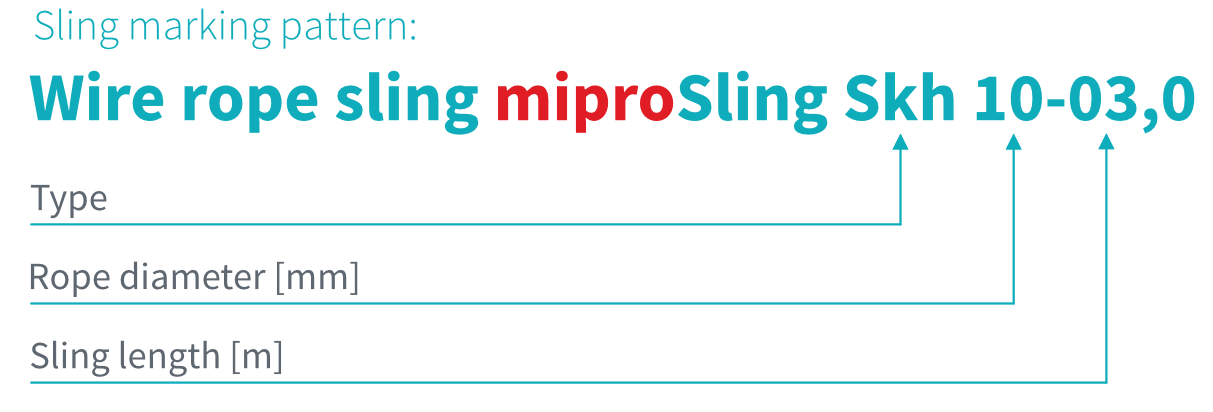

- Marked on product : producers sign, sign CE, load capacity, factory number, year of production.
| Rope diameter [mm] |
Working Load Limit [kg] |
|
|
|
|
|
| 5 | 220 | 180 |
| 6 | 320 | 260 |
| 8 | 630 | 500 |
| 10 | 950 | 760 |
| 11 | 1 150 | 920 |
| 12 | 1 350 | 1 080 |
| 13 | 1 600 | 1 280 |
| 14 | 1 850 | 1 480 |
| 16 | 2 400 | 1 930 |
| 18 | 3 000 | 2 400 |
| 20 | 3 800 | 3 040 |
| 22 | 4 600 | 3 680 |
| 24 | 5 400 | 4 350 |
| 26 | 6 400 | 5 120 |
| 28 | 7 400 | 5 910 |
| 30 | 8 500 | 6 800 |
| 32 | 9 700 | 7 730 |
| 36 | 13 700 | 9 800 |
| 40 | 17 000 | 13 600 |
| 44 | 21 000 | 16 750 |
| 48 | 24 300 | 19 450 |
| 52 | 28 500 | 22 840 |
| 56 | 33 100 | 26 500 |
| 60 | 38 000 | 30 400 |
