Uchwyt transportowy

Clamp for transportation


  • Handles type M-2011-005 are used to transport profiles with the shape defined below. The handles should be used in pairs using a cross-beam. Do not use the handle in particularly dangerous conditions

  • Complies with the provisions of the Machinery Directive: 2006/42/WE

  • Made according to the harmonized standard: PN-EN 13155

Marked on  product : producers sign, sign CE, load capacity, factory number,  year of production.

WLL [kg]

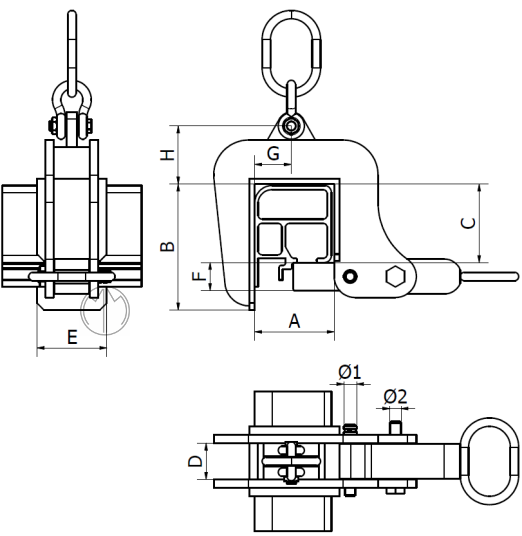

Dimensions [mm]

Weight [kg]

A

B

C

D

E

F

G

H

Ø1

Ø2

1 000

114

180

112

52

100

40

52,5

83

18,5

16

15,0
