Screw Clamp JP - universal

Screw Clamp JP - universal

WLL: 750 - 5000 kg
Gripping range: 0 - 120 mm

min 20 WLL.png



  Made in EU szary.png

Screw Clamp JP - universal

  • Suitable for the lifting of steel plate and steel construction.
  • Complies with the provisions of the Machinery Directive: 2006/42/WE
  • Made according to the harmonized standard: PN-EN 13155

Marked on  product: producers sign, sign CE, load capacity, factory number,  year of production.


Code WLL
[kg]		 Gripping range
G [mm]		 Dimensions
 [mm]		 Mass
[kg]
H A B L I C D E
JP 0,75 750 0-30 247 145 50 204 120 85 Ø19 105 3,5
JP 1,0 1 000 50-100 323 245 100 328 150 85 Ø19 100 6,9
JP 1,5 1 500 0-40 268 185 60 265 150 85 Ø19 100 5,5
JP 3,0 3 000 0-60 300 230 70 340 200 85 Ø19 95 9
JP 5,0 5 000 0-80 356 270 75 416 240 86 Ø26 116 17



Code WLL
[kg]		 Gripping range
G [mm]		 Dimensions
[mm]		 Mass
[kg]
H A B L I C D E
JP PRV 0,2 200 0-100 343 245 120 380 150 85 Ø19 100 8
JP PRV 0,6 600 15-75 268 220 60 325 150 85 Ø19 100 6
JP PRV 2,0 2 000 15-120 356 310 75 471 240 86 Ø26 116 19

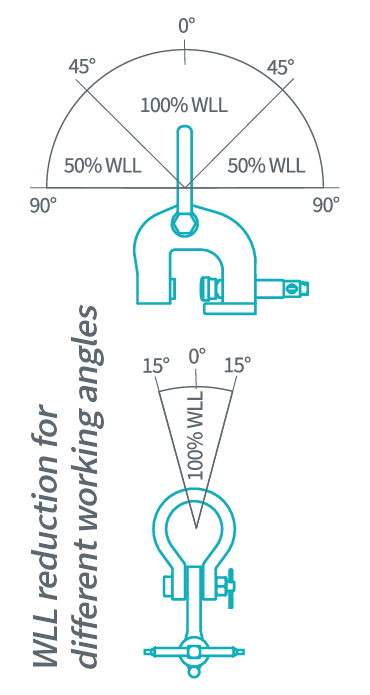

reduction working angles JP.PNG
