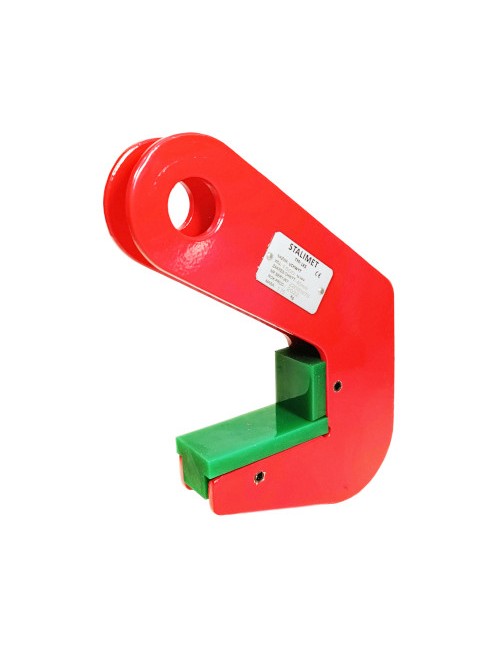

Pipe lifting clamp LKS

Grabs used in pairs and suitable for transport of pipes

Complies with the provisions of the Machinery Directive: 2006/42/WE

Made according to the harmonized standard: PN-EN 13155

Marked on product : producers sign, sign CE, load capacity, factory number, year of production

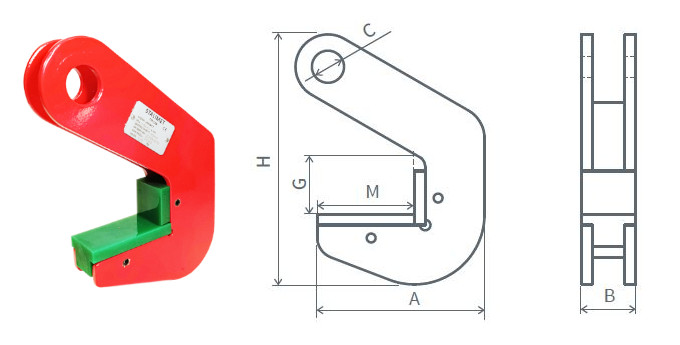

Code	WLL/pair [kg]	G gripping range [mm]	Dimension [mm]					Mass [kg]
Code	WLL/pair [kg]	G gripping range [mm]	A	B	∅C	H	M	Mass [kg]
LKS 1,5	1 500	40	137	35	27	220	70	1,8
LKS 3,0	3 000	40	142	35	27	228	70	2,9
LKS 4,0	4 000	50	144	40	30	228	70	4
