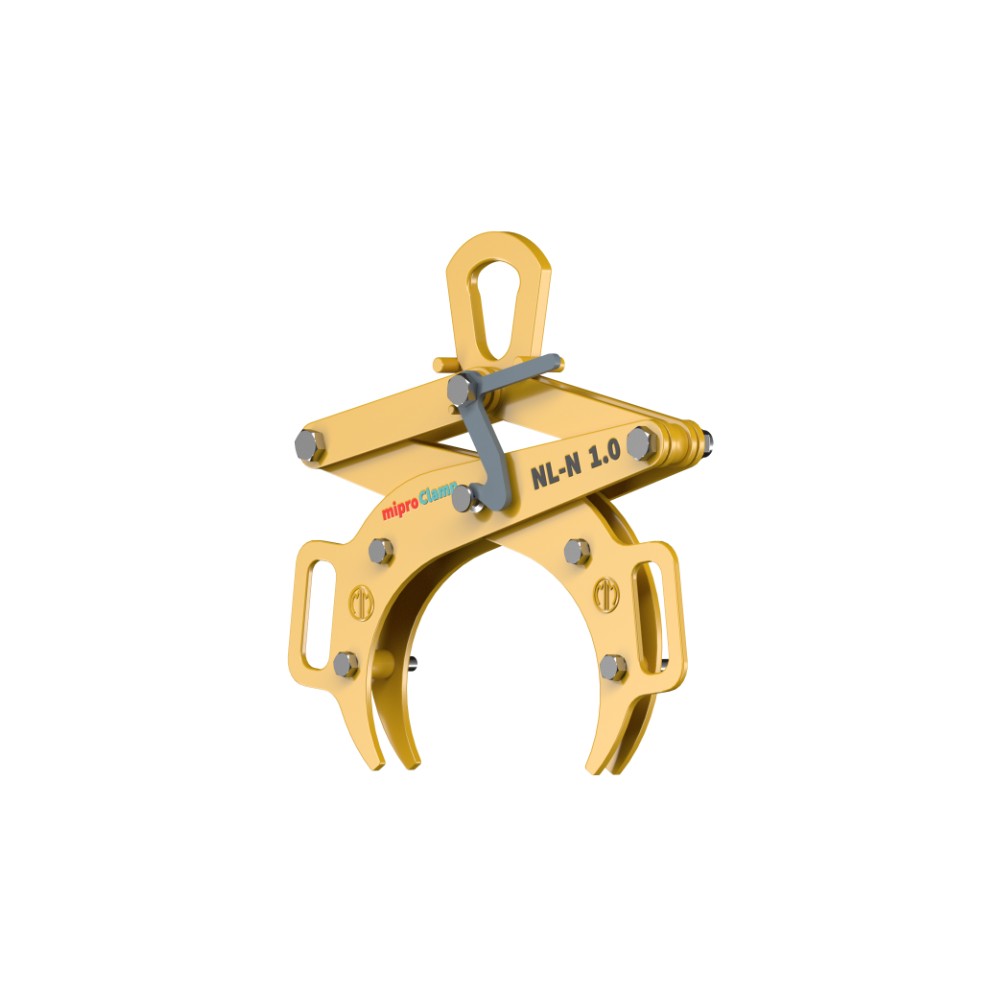

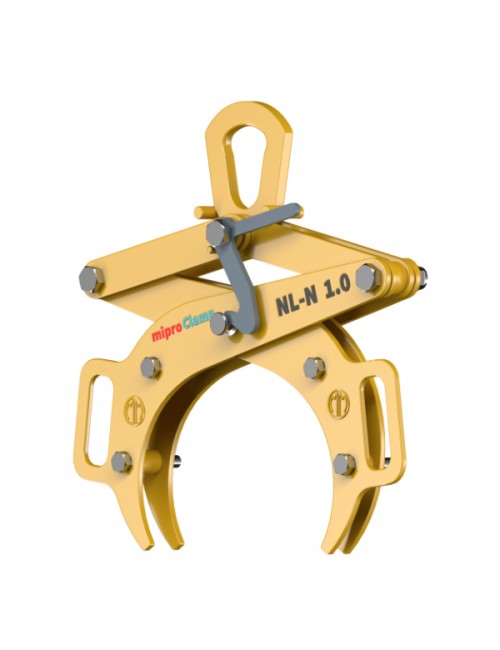

Round profile clamp NL-N

Round profile clamp NL-N

WLL: 500 - 1000 kg
Gripping range: 88,9 - 273 mm


Round profile clamp NL-N

  • Complies with the provisions of the Machinery Directive: 2006/42/WE
  • Made according to the harmonized standard: PN-EN 13155

Marked on  product : producers sign, sign CE, load capacity, factory number,  year of production.

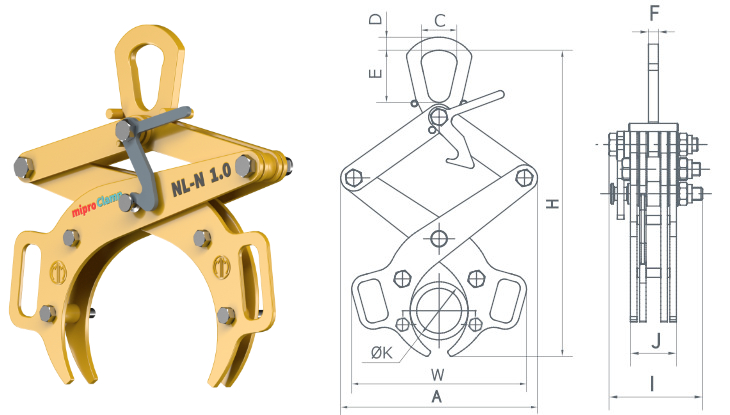

CODE WLL Gripping range ØK [mm] Dimensions [mm] Mass
[kg] A W C D E H I J F [kg]
NL-N 0,5 500 88,9 - 150 302 - 344 268 - 303 55 20 80 377 - 469 114 56 12 9
NL-N 1,0 1 000 139,7 - 273 420 - 501 416 - 507 70 30 100 587 - 751 131 59 15 19



CODE WLL Gripping range ØK [mm]
[kg]
NL-N PRV 0,1-140 100 130 - 140
NL-N PRV 1,0-219 1 000 114 - 219
NL-N PRV 0,12-270 120 200 - 270
NL-N PRV 0,125-300 125 200 - 300
NL-N PRV 0,2-300 200 200 - 300
NL-N PRV 1,0-400 1 000 200 - 400
NL-N PRV 0,1-750 1 000 500 - 750
NL-N PRV 1,0-800 1 000 400 - 800

Product Details

2300

Download

Catalog miproClamp Round section

Download (8.44M)
