C-Hook for metal sheet coil CH-J A-N

C-Hook for metal sheet coil CH-J A-N

WLL: 10 000 - 24 000 kg


C-Hook for metal sheet coil CH-J A-N

  • Designed to move sheet metal coils in position vertical tilted backwards or using additional safety device against slipping - in position vertical
  • The length of the gripping part of the sling provides support at least 80% of the width of the transferred coil
  • Equipped with two maneuvering handles
  • Surface of the gripping part, direct contact - with the transferred coil, equipped with a covered cover made of non-scratching soft material

    Complies with the provisions of the Machinery Directive: 2006/42/EC

Made according to the harmonized standard: PN-EN 13155

Marked on  product : producers sign, sign CE, load capacity, factory number,  year of production, size and mass.

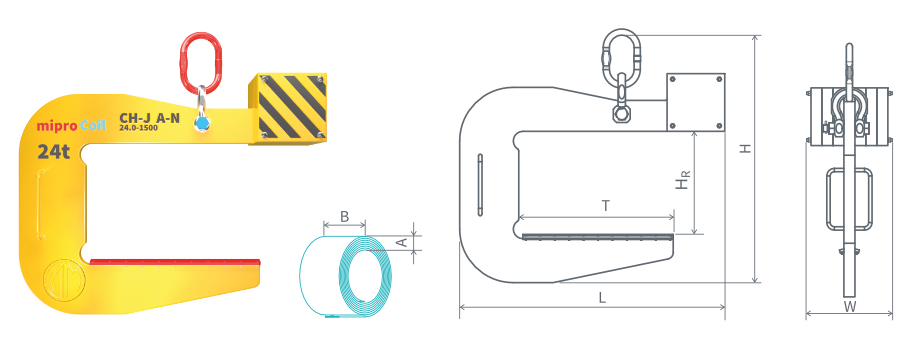

Code DOR B Amax T HR H L W Grip mass
[kg] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
CH-J A-N 10.0-1000 10 000 1 000 700 775 800 1 579 1 279 450 S32 595
CH-J A-N 20.0-1300 20 000 1 300 550 1 050 650 1 567 1 670 786 AW36 1 100
CH-J A-N 24.0-1500 24 000 1 500 650 1 125 750 1 801 1 930 626 AW45 1 535
