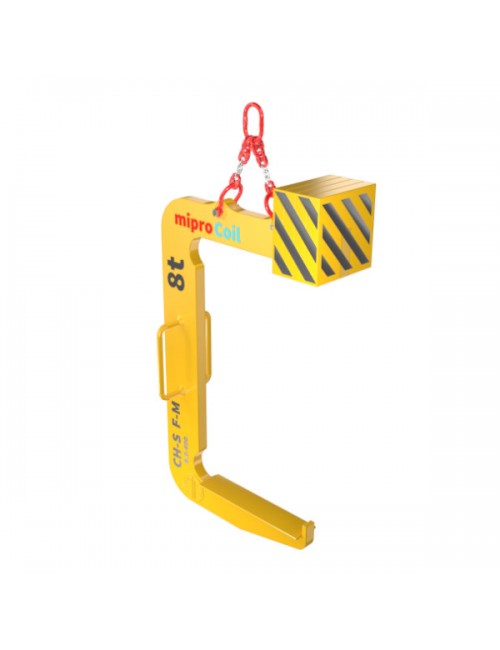

C-Hook for metal sheet coil CH-S F-M

C-Hook for metal sheet coil CH-S F-M

WLL: 8 000 - 13 000 kg


C-Hook for metal sheet coil CH-S F-M

  • Designed to move sheet metal coils in position vertically upturned or in a vertical position
  • Equipped with a tooth to prevent slipping the transferred vertebra
  • Equipped with two maneuvering handles
  • The length of the gripping part of the sling provides support the entire width of the transferred coil
  • Surface of the gripping part, direct contact - with the transferred coil, equipped with covered with a welded sheet metal cover


Complies with the provisions of the Machinery Directive: 2006/42/EC

Made according to the harmonized standard: PN-EN 13155

Marked on  product : producers sign, sign CE, load capacity, factory number,  year of production, size and mass.


Code DOR B T HR H L W mass
[kg] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
CH-S F-M 08,0-600 8 000 600 600 1 111 1 905 935 300 330
CH-S F-M 13,0-1500 13 000 1 500 1 250 700 2 391 1 610 780 1 200
