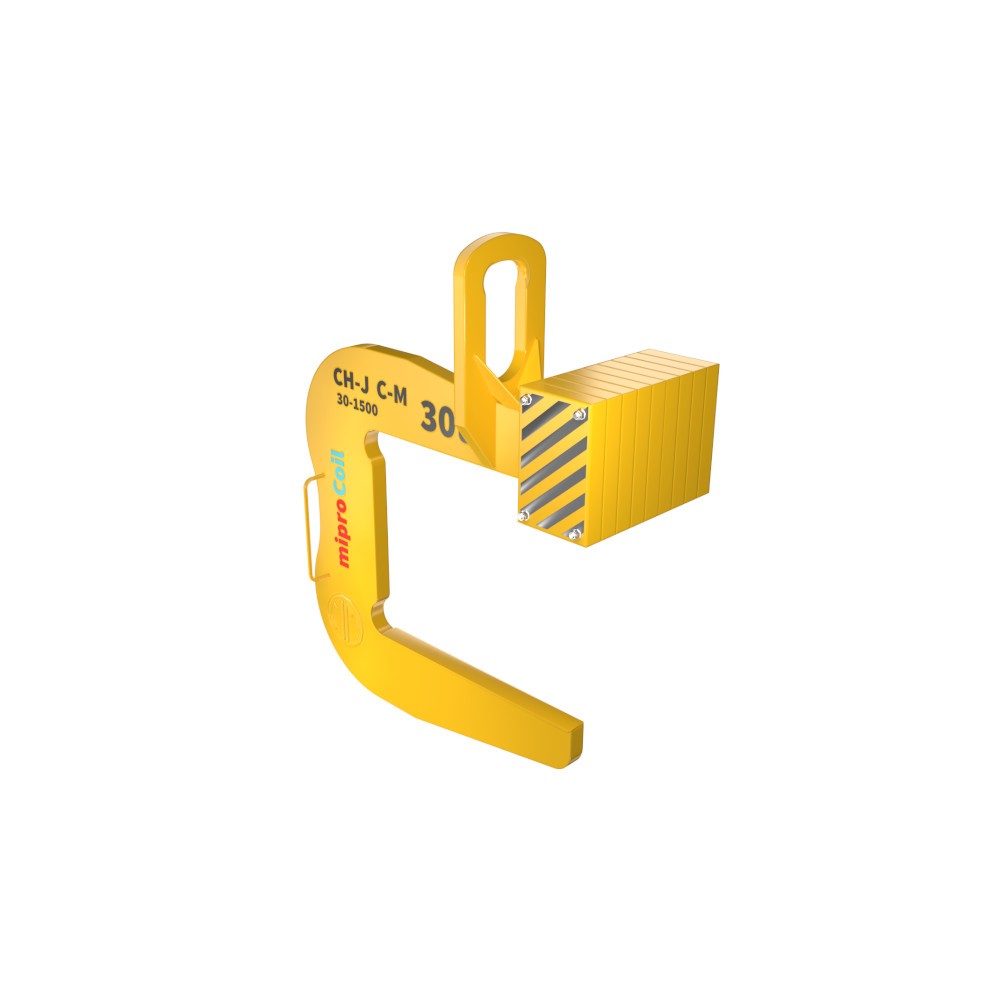

C-Hook for metal sheet coil CH-J C-M

Description

C-Hook for metal sheet coil CH-J C-M

Designed to move sheet metal coils in position vertical tilted backwards or using additional safety device against slipping - in position vertical
The length of the gripping part of the sling provides support at least 80% of the width of the transferred coil
Equipped with two maneuvering handles
Surface of the gripping part, direct contact - with the transferred coil, equipped with covered with a welded sheet metal cover

Complies with the provisions of the Machinery Directive: 2006/42/EC

Made according to the harmonized standard: PN-EN 13155

Marked on product : producers sign, sign CE, load capacity, factory number, year of production, size and mass.

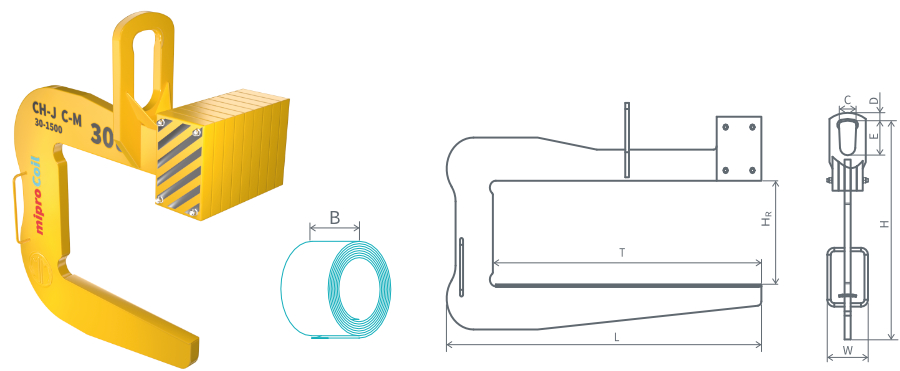

Code	DOR	B	T	H_R	H	L	W	C	D	E	F	mass
Code	[kg]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
CH-J C-M 2.5-300	2 500	300	250	550	930	497	260	75	35	160	20	65
CH-J C-M 2.7-1800	2 700	1 800	1 800	600	1 266	2 110	235	100	45	200	25	440
CH-J C-M 5.0-500	5 000	500	400	600	1 076	670	240	100	45	200	25	160
CH-J C-M 6.0-1350	6 000	1 350	1 100	400	1 001	1 599	290	110	45	200	30	386
CH-J C-M 7.5-1250	7 500	1 250	1 000	650	1 291	1 485	290	110	55	220	30	455
CH-J C-M 7.5-750	7 500	750	650	602	1 182	996	350	110	55	220	30	328
CH-J C-M 7.5-1050	7 500	1 050	870	650	1 441	1 360	400	135	50	320	35	515
CH-J C-M 8.0-650	8 000	650	500	800	1 421	840	540	190	65	300	40	400
CH-J C-M 8.0-1250	8 000	1 250	1 000	650	1 321	1 571	420	110	55	220	35	525
CH-J C-M 10.0-1000	10 000	1 000	800	700	1 406	1 250	450	120	60	250	35	510
CH-J C-M 10.0-1050	10 000	1 050	870	650	1 531	1 400	450	150	60	350	35	615
CH-J C-M 12.5-2000	12 500	2 000	1 700	900	1 987	2 370	490	110	62	220	35	1 105
CH-J C-M 12.5-1250	12 500	1 250	1 000	700	1 417	1 565	490	110	62	220	35	725
CH-J C-M 15.0-1250	15 000	1 250	1 000	800	1 580	1 616	630	150	65	250	45	840
CH-J C-M 15.0-1500	15 000	1 500	1 200	550	1 393	1 869	640	130	70	270	40	1 055
CH-J C-M 15.0-1500 L	15 000	1 500	1 200	700	1 543	1 869	640	130	70	270	40	1 140
CH-J C-M 16.0-1250	16 000	1 250	1 200	850	1 732	1 570	610	130	70	300	40	910
CH-J C-M 22.0-2100	22 000	2 100	1 575	950	1 988	2 580	796	130	70	330	60	2 250
CH-J C-M 25.0-1660	25 000	1 660	1 245	900	2 003	2 140	796	160	75	410	60	1 820
CH-J C-M 25.0-2000	25 000	2 000	1 600	950	2 143	2 500	796	160	75	420	60	2 150
CH-J C-M 30.0-2000	30 000	2 000	1 700	900	2 018	2 540	796	130	90	275	40	2 290
CH-J C-M 30.0-1500	30 000	1 500	1 200	1 000	2 192	1 980	786	220	100	460	60	1 920
CH-J C-M 35.0-2200	35 000	2 200	2 205	1 000	2 090	2 640	1060	220	110	460	60	3 950
