Telescopic spreader/lifting beam with adjustable span TPR-W

Telescopic spreader/lifting beam with adjustable span TPR-W

WLL: 6 000 - 10 000 kg



Telescopic spreader/lifting beam with adjustable span TPR-W

  • Universal beam for various applications when lifting heavier and longer loads with a choice of 2 or 4 suspension points. In the case of limited headroom, it can work as a simple beam suspended on a single hook
  • Working length adjustable with a stroke of 250 mm, individual working positions locked with a pin secured with a cotter pin
  • Sold without accessories (i.e. without slings, hooks, shackles, etc.)
  • Designed to work with a 2-leg sling (maximum angle of deviation from the vertical - 45°)
  • Equipped with a full extension lock for the internal profile

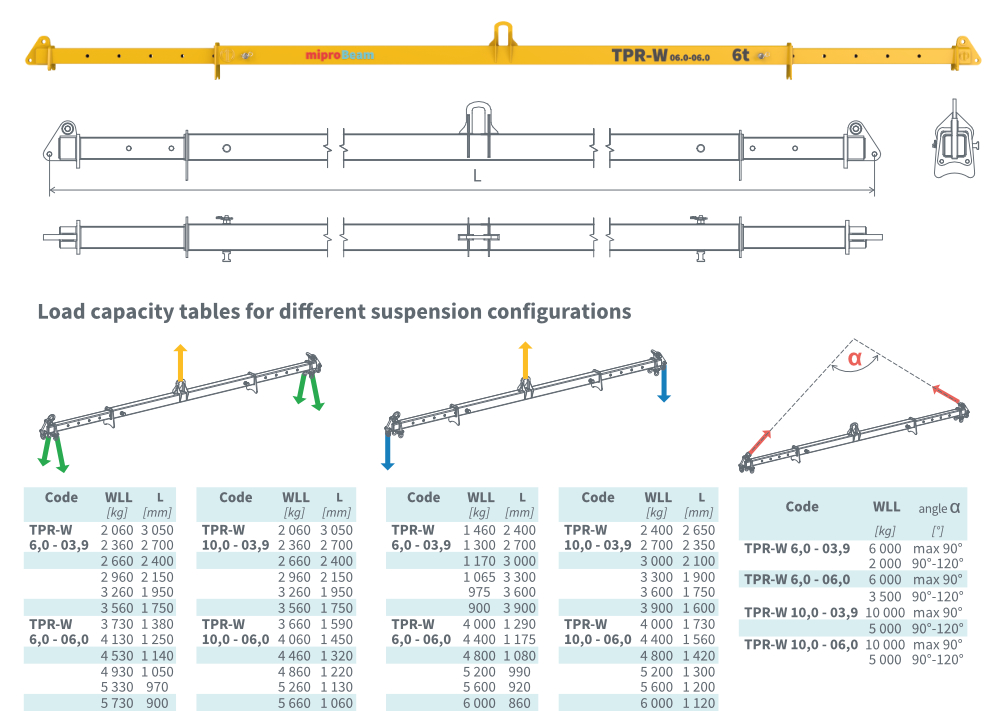

Code WLL Working range L
[kg] [m]
TPR-W 06,0 - 03,9 6 000 3,9 - 2,13
TPR-W 06,0 - 06,0 6 000 6,0 - 3,73
TPR-W 10,0 - 03,9 10 000 3,9 - 2,06
TPR-W 10,0 - 06,0 10 000 6,0 - 3,66

WLL - Working Load Limit


* The offer applies to the lifting beam itself, without slings
