Protection sleeve PVC

Intended for textile slings
Protects sling belts from cutting, creasing, or puncturing - increases abrasion resistance
Material: Double-layer PVC reinforced with textile mesh
Protects the sling from sharp edges with a radius ≥ 2mm
Maximum cover length: 4000 mm
Easy to keep clean - dirt can be pressure washed off
Protects the cargo surface from scratches

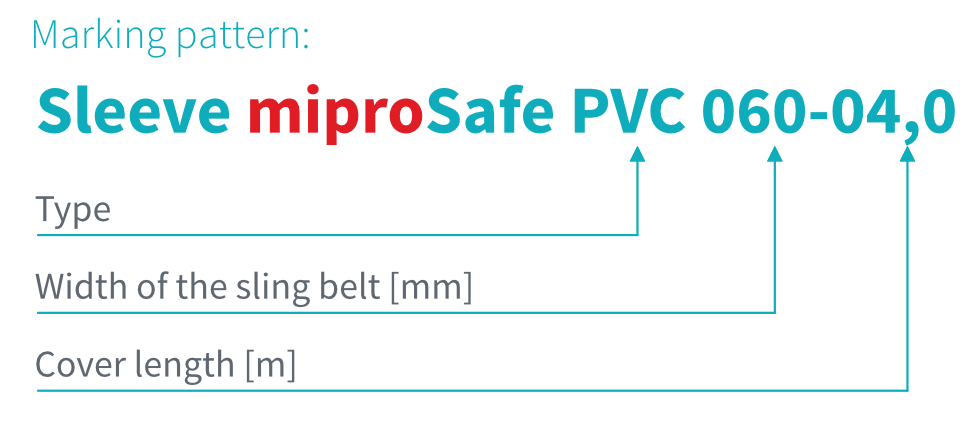

Code	Belt width [mm]	For roundslings with lifting capacity [kg]	Wall thickness [mm]	Mass of 1 meter of cover [kg/mb]
PVC 060 ….	30; 60	1000	2,4	0,48
PVC 090 ….	90	2 000 ; 3 000; 4 000	2,6	0,73
PVC 120 ….	120	5000	2,6	0,98
PVC 180 ….	150; 180	6 000; 8 000; 10 000		1,3
PVC 300 ….	240; 300	15 000; 20 000		2,55
