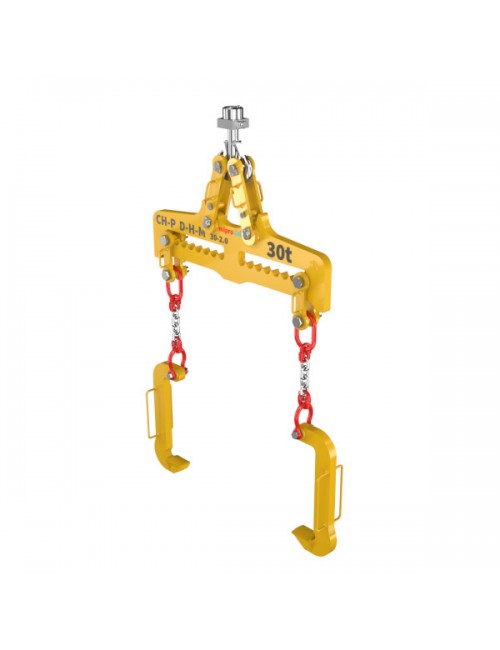

Coil tongs CH-P D-H-M - with regulation

Coil tongs CH-P D-H-M - with regulation

WLL: 30 000 kg


Coil tongs CH-P D-H-M - with regulation

  • Designed for handling sheet metal coils in a vertical position vertically supported with two-point support at the side edges of the coil
  • Equipped with maneuvering handles
  • Adapted from lifting with a two-horn hook


Complies with the provisions of the Machinery Directive: 2006/42/EC

Made according to the harmonized standard: PN-EN 13155

Marked on  product : producers sign, sign CE, load capacity, factory number,  year of production, size and mass.

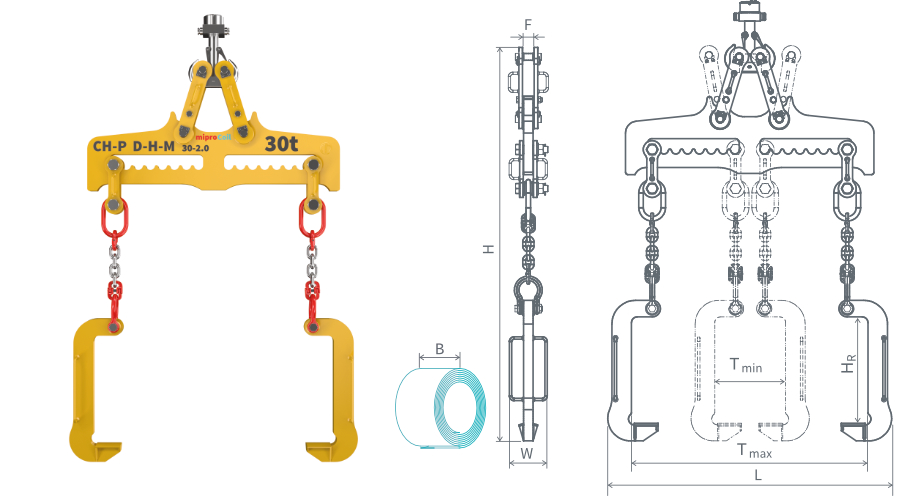

Code DOR B T HR H L W F mass
[kg] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
CH-P D-H-M 30-2,0 30 000 600-2 000 600-200 900 3 327 2 400 320 100 1 081
