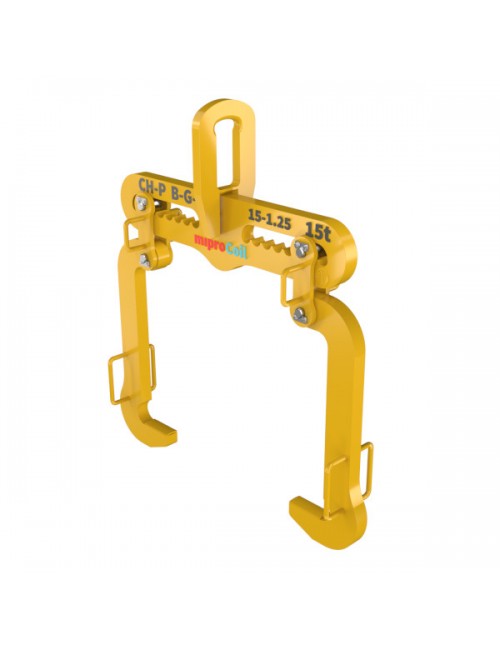

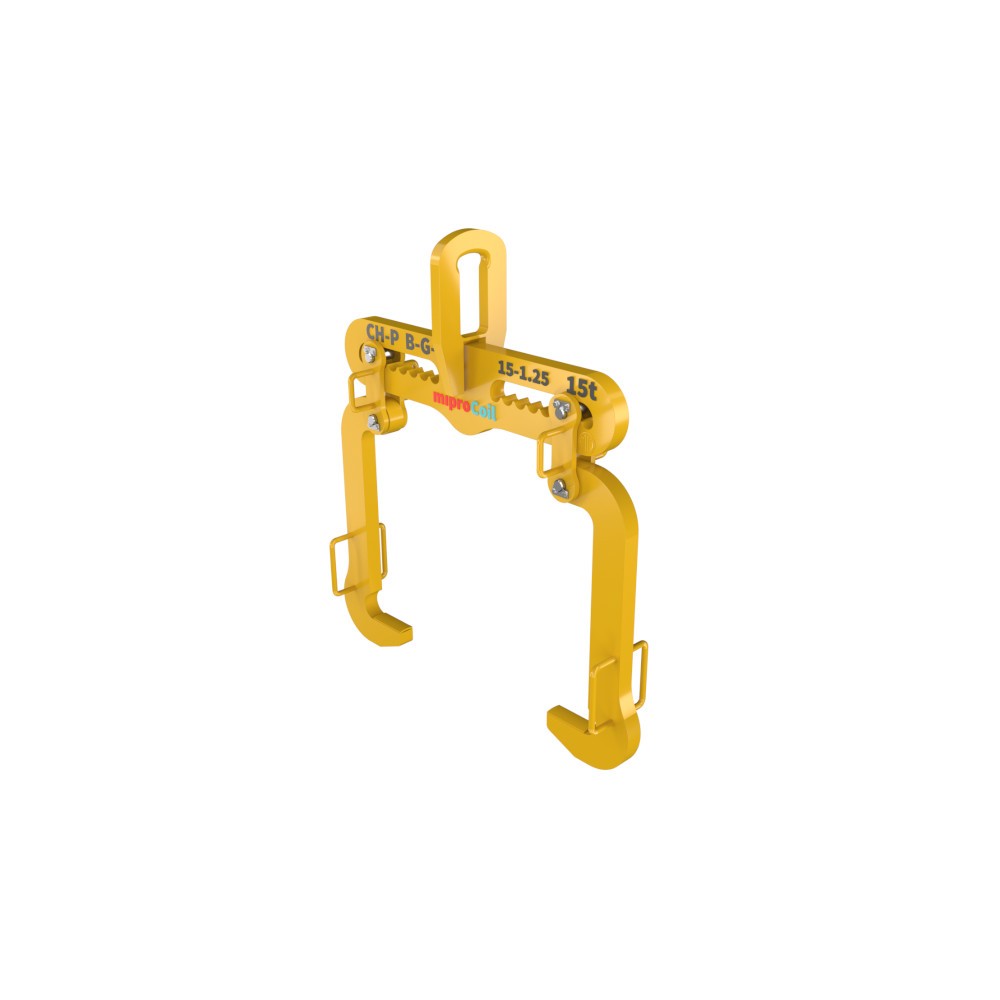

Coil tongs CH-P B-G-M - with regulation

Coil tongs CH-P B-G-M - with regulation

WLL: 10 000 kg


Coil tongs CH-P B-G-M - with regulation

  • Designed for handling sheet metal coils in a vertical position vertically supported with two points at the side edges of the coil
  • Equipped with maneuvering handles


Complies with the provisions of the Machinery Directive: 2006/42/EC

Made according to the harmonized standard: PN-EN 13155

Marked on  product : producers sign, sign CE, load capacity, factory number,  year of production, size and mass.

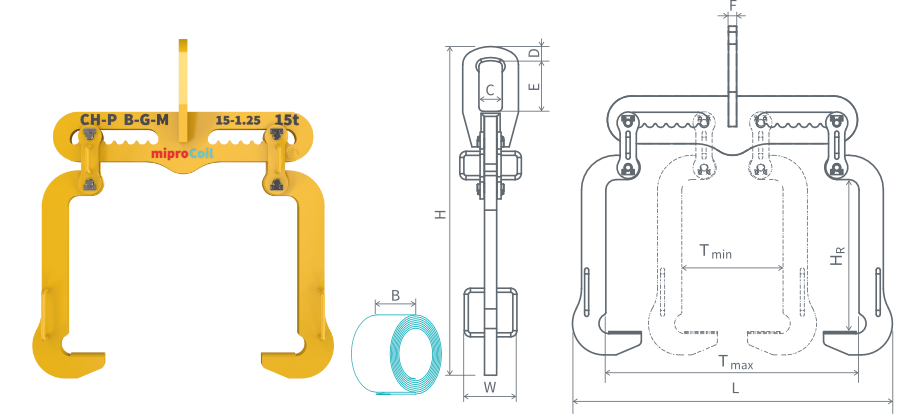

Code DOR B T HR H L W C D E F mass
[kg] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
CH-P B-G-M 10-1,25 10 000 500-1 250 500-1 250 762 1 597 1 580 240 120 60 250 35 215
