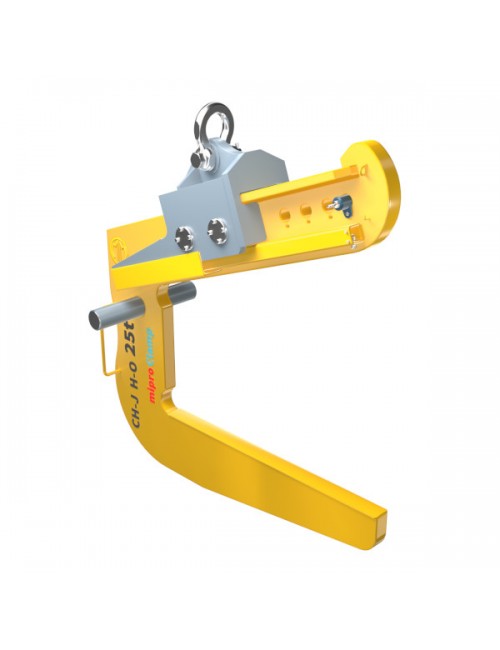

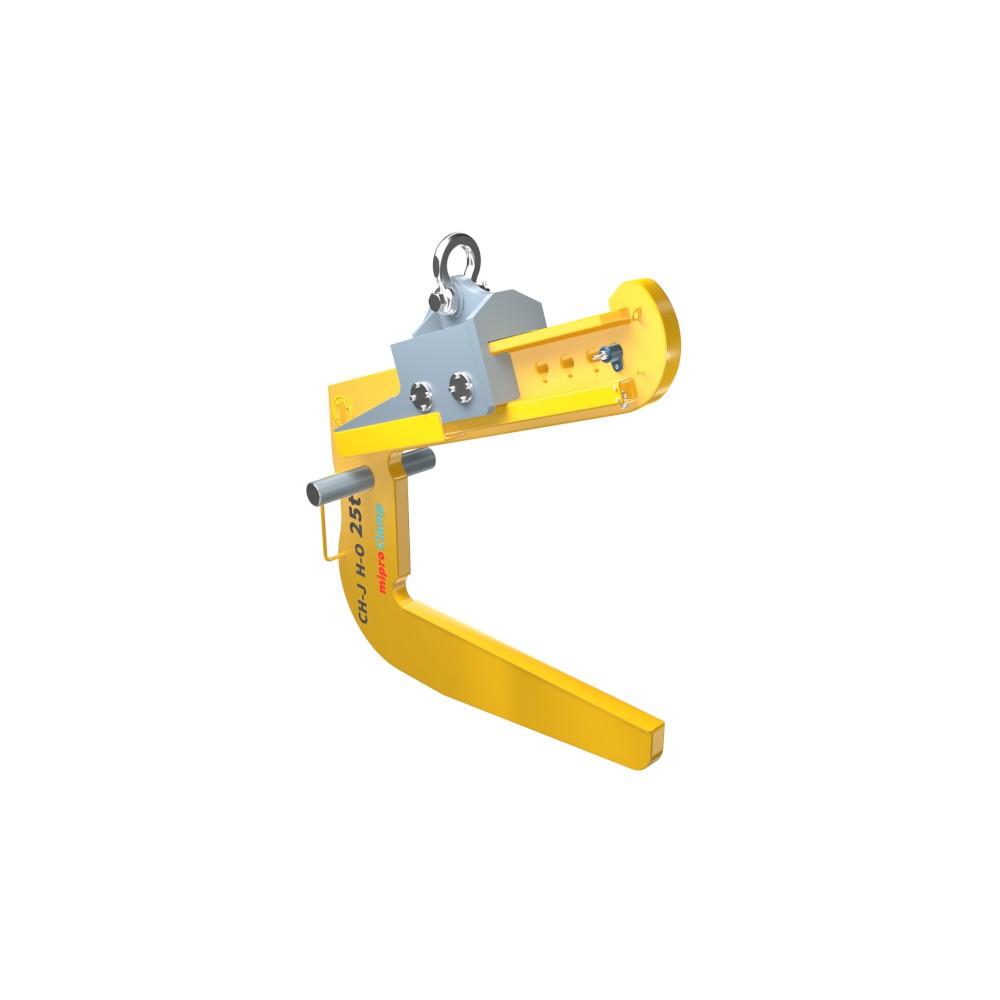

C-Hook for metal sheet coil CH-J H-O
- Designed to move sheet metal coils in position vertical tilted backwards or using additional safety device against slipping - in position vertical
- The length of the gripping part of the sling provides support at least 80% of the width of the transferred coil
- Equipped with an automatic compensation mechanism center of gravity - the handle with the shackle moves along guides in proportion to the suspended mass
- Correct operation of the mechanism requires preliminary stresses of at least 20% of the DOR
- Equipped with maneuvering handles
- Surface of the gripping part, direct contact - connecting with the transferred circle, rounded through edge chamfering
Complies with the provisions of the Machinery Directive: 2006/42/EC
Made according to the harmonized standard: PN-EN 13155
Marked on product : producers sign, sign CE, load capacity, factory number, year of production, size and mass.
Code | DOR | B | T | HR | H | L | W | mass |
[kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
CH-J H-O 25.0-1700 | 25 000 | 800-1 700 | 1 500 | 753 | 2 076 | 1 960 | 690 | 1 580 |
