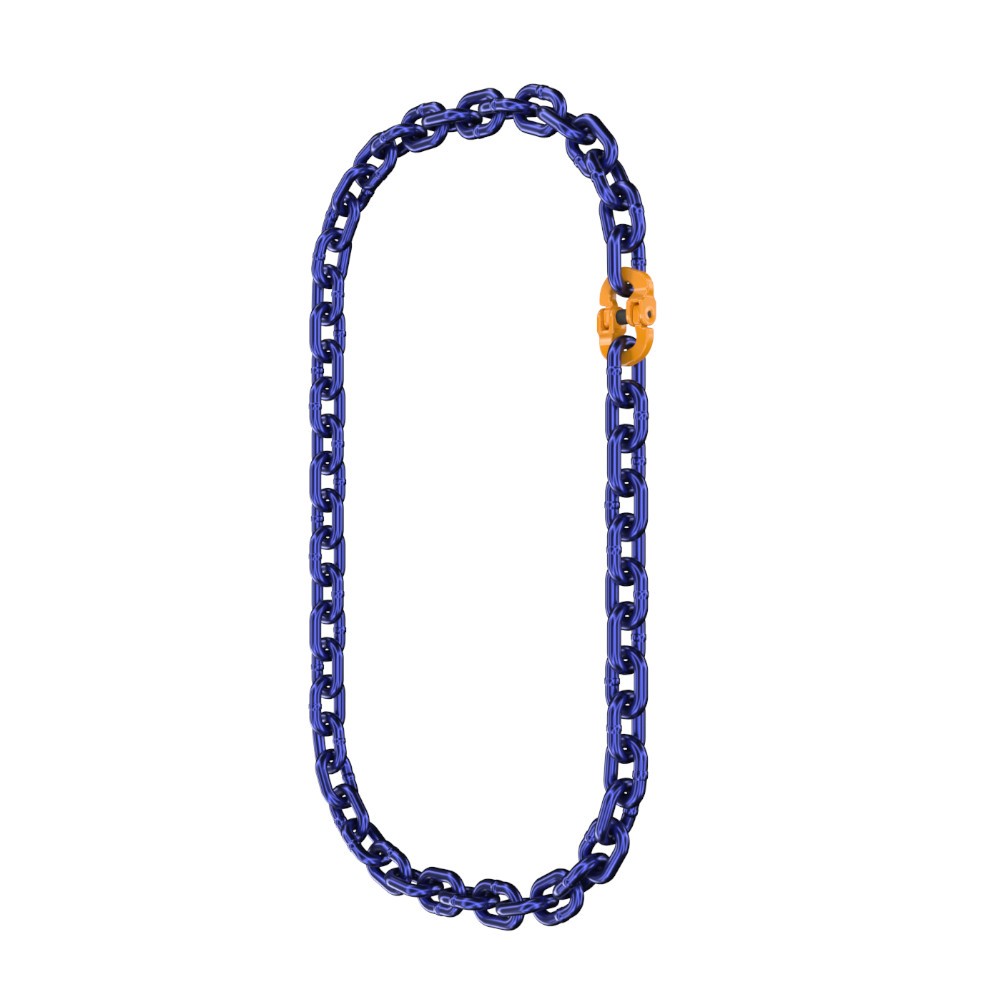

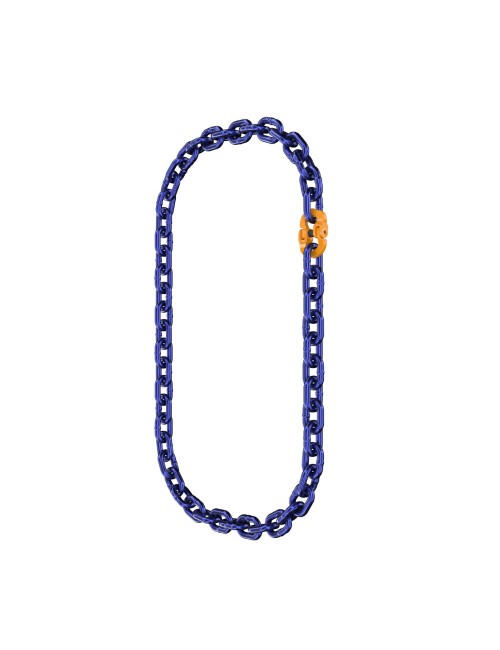

Chain sling type S, closed (Class 10)

Chain sling type S, closed (Class 10)

• Chain sling made in class 10
• Safety factor 4:1
• Accessory test load 2.5 x DOR
• Tested to withstand 20,000 operating cycles
• Comply with the provisions of the 2006/42/EC Machinery Directive and the harmonized EN 818-4 heavy-duty standard.
• They have a durable nameplate with the following stamped: manufacturer's mark, class, factory number, length, CE mark and permissible working load.

The length of the sling is made to individual order and is measured between the upper and lower attachment points.

Working load limit of slings:

Type	Chain sling type S, closed
Safety factor 4:1
Chain size [mm]	Working load limit[kg]
	---
5	1 600
6	2 240
7	3 000
8	4 000
10	6 300
13	10 600
16	16 000
19	22 400
22	30 000
26	42 500
32	63 000

Load reduction factors in specific working conditions:

Sling class	Temperature
	-40 - 200°C	201 - 300°C	301 - 400°C
10	100%	not allowed

Load on sharp edges:
R ≥ 2 x D of the chain	R ≥ D of the chain	sharp edges
100%	70%	50%
