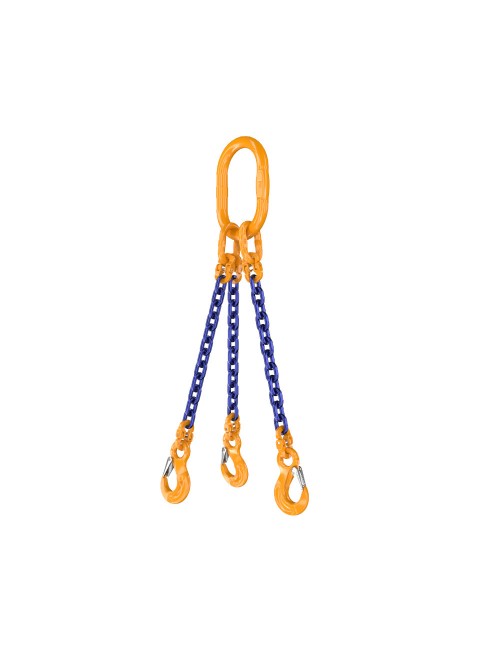

Chain sling 3-leg (Class 10)

Chain sling 3-leg (Class 10)

• Chain sling made in class 10
• Safety factor 4:1
• Accessory test load 2.5 x DOR
• Tested to withstand 20,000 operating cycles
• Comply with the provisions of the 2006/42/EC Machinery Directive and the harmonized EN 818-4 heavy-duty standard.
• They have a durable nameplate with the following stamped: manufacturer's mark, class, factory number, length, CE mark and permissible working load.

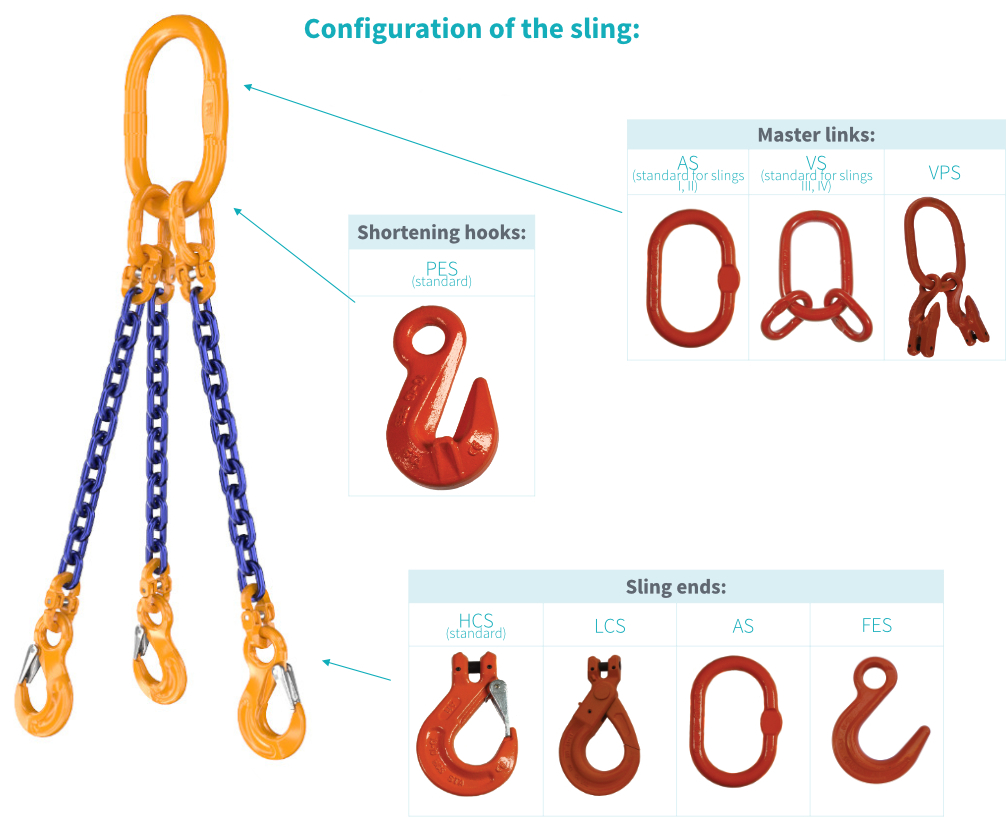

The length of the sling is made to individual order and is measured between the upper and lower attachment points.

Working load limit of slings:

Working load limit of slings:

Type	III (3-legs)
Safety factor 4:1
Chain size [mm]	Working load limit[kg]
	to 45°	45° - 60°
5	2 000	1 500
6	3 000	2 120
7	4 000	2 800
8	5 300	3 750
10	8 000	6 000
13	14 000	10 000
16	21 200	15 000
19	30 000	21 200
22	40 000	28 000
26	56 000	40 000
32	85 000	60 000

Load reduction factors in specific working conditions:

Sling class	Temperature
	-40 - 200°C	201 - 300°C	301 - 400°C
10	100%	not allowed

Load on sharp edges:
R ≥ 2 x D of the chain	R ≥ D of the chain	sharp edges
100%	70%	50%
