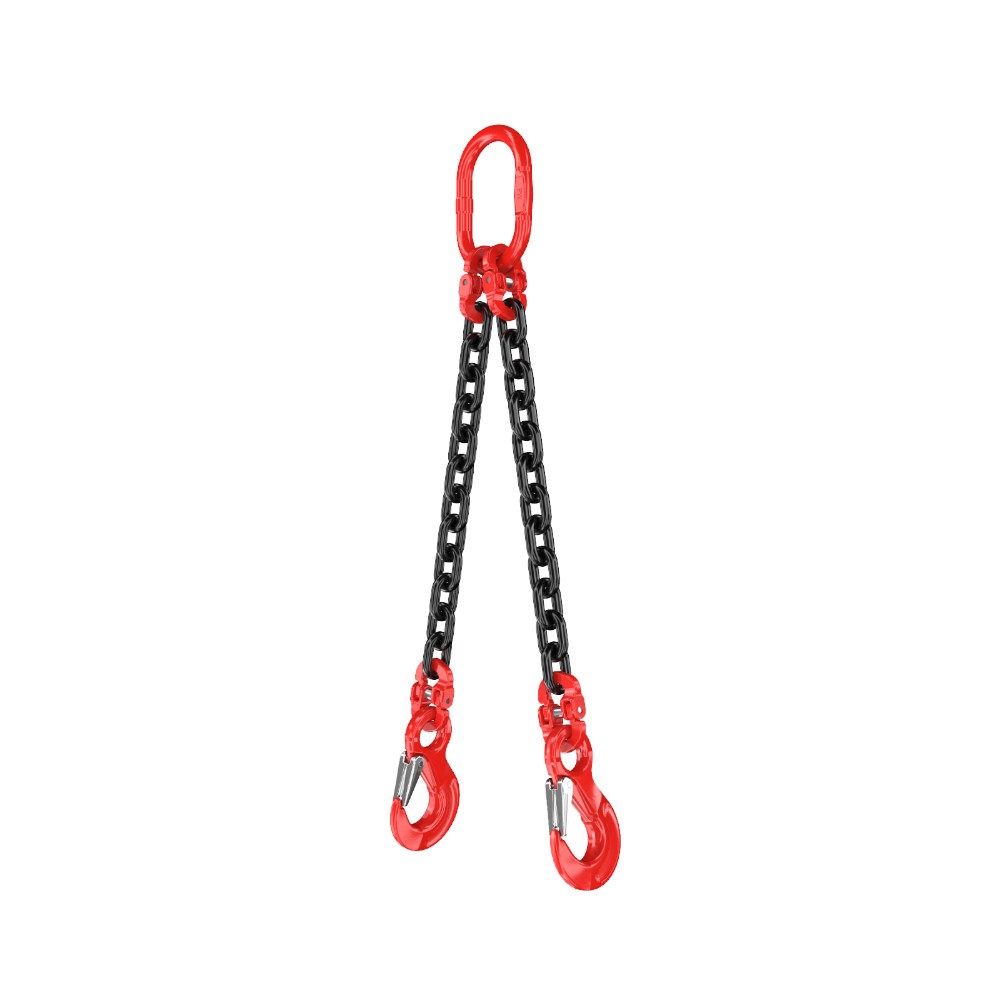

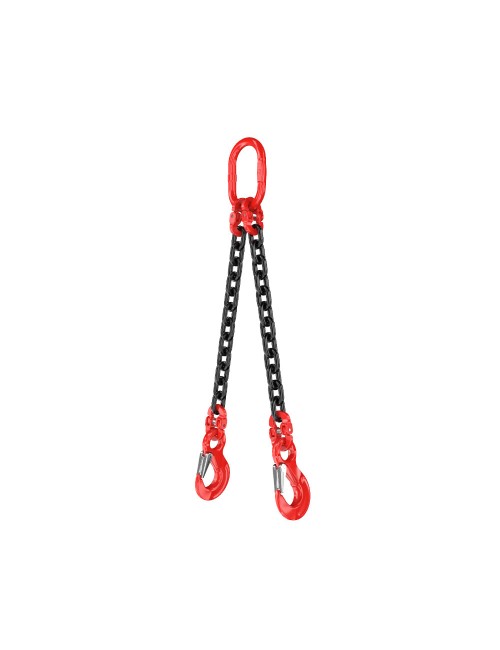

Chain sling 2-leg (Class 8)

Chain sling 2-leg (Class 8)

• Made in class 8
• Comply with the provisions of the Machinery Directive 2006/42/EC
• Safety factor 4:1
• Accessory test load 2.5 x DOR
• Tested to withstand 20,000 operating cycles
• Operating temperature -40+200°C
• Have a durable nameplate with manufacturer's stamped mark, class, factory number, length, CE mark and allowable working load.

The length of the sling is made to individual order and is measured between the upper and lower attachment points.

Working load limit of slings:

Type	II (2-leg)
Safety factor 4:1
Chain size [mm]	Working load limit [kg]
	to 45°	45° - 60°
6	1 600	1 120
8	2 800	2 000
10	4 250	3 150
13	7 500	5 300
16	11 200	8 000
20	16 000	11 200
22	21 200	15 000
26	30 000	21 200
32	45 000	31 500
36	56 000	40 000
40	71 000	50 000
45	90 000	63 000

Load reduction factors in specific working conditions:

Load on sharp edges
R ≥ 2 x D of the chain	R ≥  D of the chain	sharp edges
100%	70%	50%
