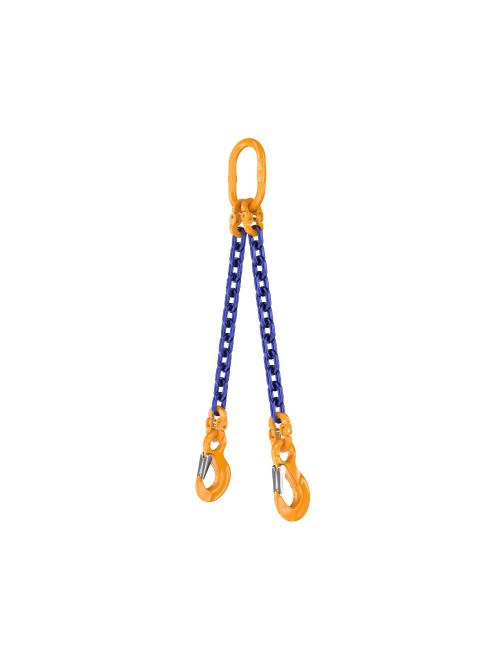

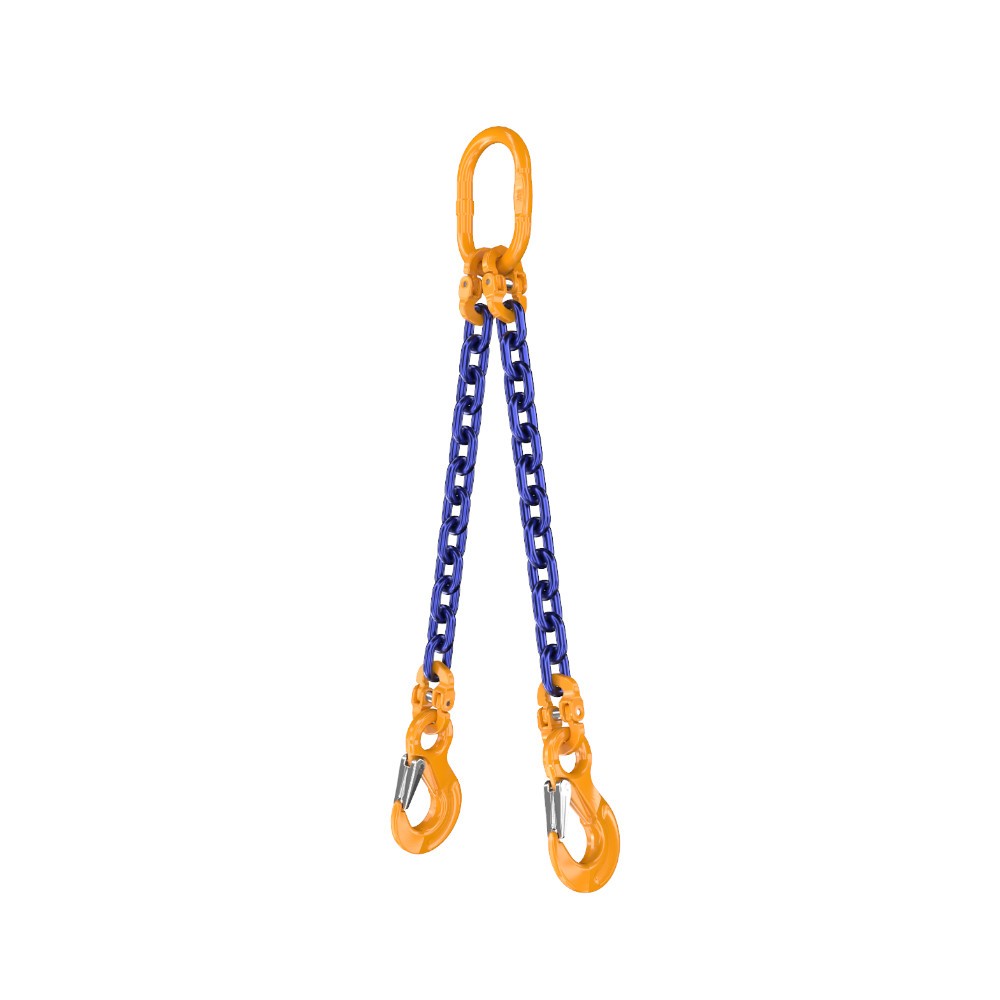

Chain sling 2-leg class 10

Chain sling 2-leg class 10

• Chain sling made in class 10
• Safety factor 4:1
• Accessory test load 2.5 x DOR
• Tested to withstand 20,000 operating cycles
• Comply with the provisions of the 2006/42/EC Machinery Directive and the harmonized EN 818-4 heavy-duty standard.
• They have a durable nameplate with the following stamped: manufacturer's mark, class, factory number, length, CE mark and permissible working load.

The length of the sling is made to individual order and is measured between the upper and lower attachment points.

Working load limit of slings:

Type	II (2-legs)
Safety factor 4:1
Chain size [mm]	Working load limit [kg]
	to 45°	45° - 60°
5	1 400	1 000
6	2 000	1 400
7	2 650	1 900
8	3 550	2 500
10	5 600	4 000
13	9 500	6 700
16	14 000	10 000
19	20 000	14 000
22	26 500	19 000
26	37 500	26 500
32	56 000	40 000

Load reduction factors in specific working conditions:

Sling class	Temperature
	-40 - 200°C	201 - 300°C	301 - 400°C
10	100%	not allowed

Load on sharp edges:
R ≥ 2 x D of the chain	R ≥ D of the chain	sharp edges
100%	70%	50%
