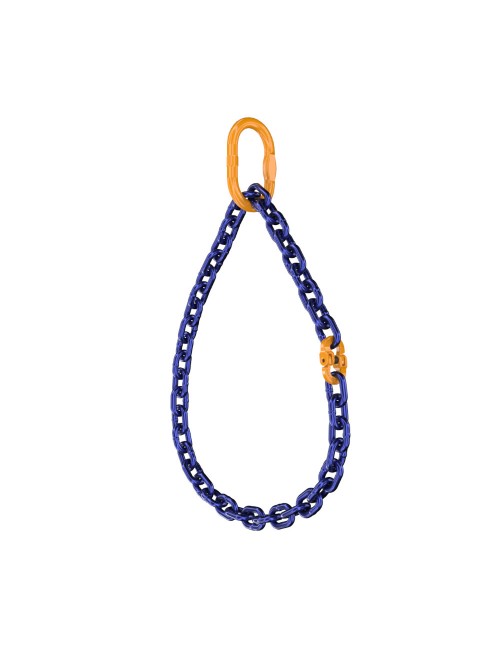

Chain sling 1 loop (Class 10) - rotary

Chain sling 1 loop (Class 10) - rotary

• Chain sling made in class 10
• Safety factor 4:1
• Accessory test load 2.5 x DOR
• Tested to withstand 20,000 operating cycles
• Comply with the provisions of the 2006/42/EC Machinery Directive and the harmonized EN 818-4 heavy-duty standard.
• They have a durable nameplate with the following stamped: manufacturer's mark, class, factory number, length, CE mark and permissible working load.

The length of the sling is made to individual order and is measured between the upper and lower attachment points.

Working load limit of slings:

Working load limit of slings:

Type	I-SO (1-loop - rotary)
Safety factor 4:1
Chain size [mm]	Working load limit[kg]
	to 45°	45° - 60°
5	1 000	800
6	1 400	1 120
7	1 900	1 500
8	2 500	2 000
10	4 000	3 150
13	6 700	5 300
16	10 000	8 000
19	14 000	11 200
22	19 000	15 000
26	26 500	21 200
32	40 000	31 500

Load reduction factors in specific working conditions:

Sling class	Temperature
	-40 - 200°C	201 - 300°C	301 - 400°C
10	100%	not allowed

Load on sharp edges:
R ≥ 2 x D of the chain	R ≥ D of the chain	sharp edges
100%	70%	50%
